シリアライズコードの最適化に取り組んでいたが、ようやくコードを書き終えた。

さてどれくらい出力したJSONデータが削減できたかだが、2割ちょっとくらいであった。

 しかしエラー処理をあまりきちっと行っていない。さらには可読性が下がり糞コードの典型例となってしまったかもしれない。なかなかきれいにコードを書くのは難しい。自分用なのでとりあえずはいいのだが。

動作サンプル

新しいウィンドウで開く

ソースコード・リソース

/dev/horse/0007/README.md

## three.jsのPathのシリアライズ(2)

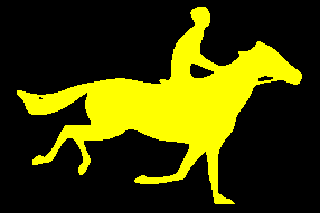

エドワード・マイブリッジの「Horse in motion」をInkscapeでトレースし、各馬をセル化したものをthree.jsのshapeに変換し表示しています。

今回はシリアライズ・デシリアライズのコードを最適化してみました。
[http://bl.ocks.org/sfpgmr/cee0c48acb0854e2055c#pathSerializer.js](http://bl.ocks.org/sfpgmr/cee0c48acb0854e2055c#pathSerializer.js)

下記のURLから動くデモが見れます。Windows 10 Tech Preview 9926 のIE11では動作しませんでした。ひょっとするとIE11ではそもそも動作しないのかもしれません。原因は不明ですが。。

[http://bl.ocks.org/sfpgmr/cee0c48acb0854e2055c](http://bl.ocks.org/sfpgmr/cee0c48acb0854e2055c)

/dev/horse/0007/index.html

<!DOCTYPE html>
<html vocab="http://schema.org" lang="ja">
<head>
  <title>Three.jsによる馬のアニメーション</title>
  <meta charset="utf-8" />
  <meta name="description" content="SVGアニメーションのテスト" />
  <meta name="keywords" content="Youtube,d3.js,Q.js,jquery" />
  <meta name="author" content="sfpgmr" />
  <meta name="viewport" content="width=device-width, initial-scale=1, maximum-scale=1, user-scalable=no" />
  <script type="text/javascript" src="./pathseg.js"></script>
  <script type="text/javascript" src="//cdnjs.cloudflare.com/ajax/libs/d3/3.5.2/d3.js"></script>
  <script type="text/javascript" src="//cdnjs.cloudflare.com/ajax/libs/three.js/r70/three.js"></script>
  <script type="text/javascript" src="pathSerializer.js"></script>
  <script type="text/javascript" src="svgToPath.js"></script>
  <script type="text/javascript" src="//cdnjs.cloudflare.com/ajax/libs/q.js/1.1.2/q.min.js"></script>
  <!--<script type="text/javascript" src="./graphics.js"></script> -->
  <link rel="stylesheet" href="//cdnjs.cloudflare.com/ajax/libs/normalize/3.0.2/normalize.min.css" />

  <style>
    body {
      margin: 0;
      padding: 0;
      overflow: hidden;
    }

    #svg {
      display: none;
    }
  </style>

</head>
<body>

  <div id="content"></div>
  <div id="svg"></div>
  <div id="svgcell"></div>
  <script type="text/javascript" src="index.js"></script>
  <script></script>
</body>
</html>

/dev/horse/0007/index.js

//The MIT License (MIT)
//
//Copyright (c) 2015 Satoshi Fujiwara
//
//Permission is hereby granted, free of charge, to any person obtaining a copy
//of this software and associated documentation files (the "Software"), to deal
//in the Software without restriction, including without limitation the rights
//to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
//copies of the Software, and to permit persons to whom the Software is
//furnished to do so, subject to the following conditions:
//
//The above copyright notice and this permission notice shall be included in
//all copies or substantial portions of the Software.
//
//THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
//IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
//FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
//AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
//LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
//OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
//THE SOFTWARE.

/// <reference path="http://cdnjs.cloudflare.com/ajax/libs/d3/3.5.2/d3.js" />
/// <reference path="http://cdnjs.cloudflare.com/ajax/libs/three.js/r70/three.js" />
/// <reference path="..\intellisense\q.intellisense.js" />
/// <reference path="pathSerializer.js" />

//var fs = require('fs');
//try {
//  fs.mkdirSync('./temp');
//} catch(e){
//  if(e.code != "EEXIST"){
//    throw e;
//  }
//}

// リリース時にはコメントアウトすること
// document.write('<script src="http://' + (location.host || 'localhost').split(':')[0] +
// ':35729/livereload.js?snipver=2"></' + 'script>');

// stackoverflowより
// 絶対座標から相対座標への変換
// http://stackoverflow.com/questions/14179333/convert-svg-path-to-relative-commands
function convertToRelative(path) {
  function set(type) {
    var args = [].slice.call(arguments, 1)
      , rcmd = 'createSVGPathSeg'+ type +'Rel'
      , rseg = path[rcmd].apply(path, args);
    segs.replaceItem(rseg, i);
  }
  var dx, dy, x0, y0, x1, y1, x2, y2, segs = path.pathSegList;
  for (var x = 0, y = 0, i = 0, len = segs.numberOfItems; i < len; i++) {
    var seg = segs.getItem(i)
      , c   = seg.pathSegTypeAsLetter;
    if (/[MLHVCSQTAZz]/.test(c)) {
      if ('x1' in seg) x1 = seg.x1 - x;
      if ('x2' in seg) x2 = seg.x2 - x;
      if ('y1' in seg) y1 = seg.y1 - y;
      if ('y2' in seg) y2 = seg.y2 - y;
      if ('x'  in seg) dx = -x + (x = seg.x);
      if ('y'  in seg) dy = -y + (y = seg.y);
      switch (c) {
        case 'M': set('Moveto',dx,dy);                   break;
        case 'L': set('Lineto',dx,dy);                   break;
        case 'H': set('LinetoHorizontal',dx);            break;
        case 'V': set('LinetoVertical',dy);              break;
        case 'C': set('CurvetoCubic',dx,dy,x1,y1,x2,y2); break;
        case 'S': set('CurvetoCubicSmooth',dx,dy,x2,y2); break;
        case 'Q': set('CurvetoQuadratic',dx,dy,x1,y1);   break;
        case 'T': set('CurvetoQuadraticSmooth',dx,dy);   break;
        case 'A': set('Arc',dx,dy,seg.r1,seg.r2,seg.angle,
                      seg.largeArcFlag,seg.sweepFlag);   break;
        case 'Z': case 'z': x = x0; y = y0; break;
      }
    }
    else {
      if ('x' in seg) x += seg.x;
      if ('y' in seg) y += seg.y;
    }
    // store the start of a subpath
    if (c == 'M' || c == 'm') {
      x0 = x;
      y0 = y;
    }
  }
  path.setAttribute('d', path.getAttribute('d').replace(/Z/g, 'z'));
}

// svg pathをthree.jsのshapeに変換する
// スペースの処理とy座標を反転するように修正
// From d3-threeD.js
// https://github.com/asutherland/d3-threeD
/* This Source Code Form is subject to the terms of the Mozilla Public
 * License, v. 2.0. If a copy of the MPL was not distributed with this file,
 * You can obtain one at http://mozilla.org/MPL/2.0/. */
var DEGS_TO_RADS = Math.PI / 180, UNIT_SIZE = 100;
var DIGIT_0 = 48, DIGIT_9 = 57, COMMA = 44, SPACE = 32, PERIOD = 46, MINUS = 45,E = 101;
function transformSVGPath(pathStr) {
	var path = new THREE.Path();
	var idx = 1, len = pathStr.length, activeCmd,
		x = 0, y = 0, nx = 0, ny = 0, firstX = null, firstY = null,
		x1 = 0, x2 = 0, y1 = 0, y2 = 0,
		rx = 0, ry = 0, xar = 0, laf = 0, sf = 0, cx, cy;
	function eatNum() {
		var sidx, c, isFloat = false, s;
		// eat delims
		while (idx < len) {
			c = pathStr.charCodeAt(idx);
			if (c !== COMMA && c !== SPACE)
				break;
			idx++;
		}
		if (c === MINUS)
			sidx = idx++;
		else
			sidx = idx;
		// eat number
		while (idx < len) {
			c = pathStr.charCodeAt(idx);
			if (DIGIT_0 <= c && c <= DIGIT_9) {
				idx++;
				continue;
			}
			else if (c === PERIOD) {
				idx++;
				isFloat = true;
				continue;
			} else if ( c === E || c === MINUS){
        idx++;
				isFloat = true;
        continue;
      }
			s = pathStr.substring(sidx, idx);
			return isFloat ? parseFloat(s) : parseInt(s);
		}
		s = pathStr.substring(sidx);
		return isFloat ? parseFloat(s) : parseInt(s);
	}
	function nextIsNum() {
		var c;
		// do permanently eat any delims...
		while (idx < len) {
			c = pathStr.charCodeAt(idx);
			if (c !== COMMA && c !== SPACE)
				break;
			idx++;
		}
		c = pathStr.charCodeAt(idx);
		return (c === MINUS || (DIGIT_0 <= c && c <= DIGIT_9));
	}
	var canRepeat;
	activeCmd = pathStr[0];
	while (idx <= len) {
		canRepeat = true;
		switch (activeCmd) {
			// moveto commands, become lineto's if repeated
			case 'M':
				x = eatNum();
				y = -eatNum();
				path.moveTo(x, y);
				activeCmd = 'L';
				firstX = x;
				firstY = y;
				break;
			case 'm':
				x += eatNum();
				y += -eatNum();
				path.moveTo(x, y);
				activeCmd = 'l';
				firstX = x;
				firstY = y;
				break;
			case 'Z':
			case 'z':
				canRepeat = false;
				if (x !== firstX || y !== firstY)
					path.lineTo(firstX, firstY);
				break;
			// - lines!
			case 'L':
			case 'H':
			case 'V':
				nx = (activeCmd === 'V') ? x : eatNum();
				ny = (activeCmd === 'H') ? y : -eatNum();
				path.lineTo(nx, ny);
				x = nx;
				y = ny;
				break;
			case 'l':
			case 'h':
			case 'v':
				nx = (activeCmd === 'v') ? x : (x + eatNum());
				ny = (activeCmd === 'h') ? y : (y + -eatNum());
				path.lineTo(nx, ny);
				x = nx;
				y = ny;
				break;
			// - cubic bezier
			case 'C':
				x1 = eatNum(); y1 =  -eatNum();
			case 'S':
				if (activeCmd === 'S') {
					x1 = 2 * x - x2; y1 = 2 * y - y2;
				}
				x2 = eatNum();
				y2 = -eatNum();
				nx = eatNum();
				ny = -eatNum();
				path.bezierCurveTo(x1, y1, x2, y2, nx, ny);
				x = nx; y = ny;
				break;
			case 'c':
				x1 = x + eatNum();
				y1 = y + -eatNum();
			case 's':
				if (activeCmd === 's') {
					x1 = 2 * x - x2;
					y1 = 2 * y - y2;
				}
				x2 = x + eatNum();
				y2 = y + -eatNum();
				nx = x + eatNum();
				ny = y + -eatNum();
				path.bezierCurveTo(x1, y1, x2, y2, nx, ny);
				x = nx; y = ny;
				break;
			// - quadratic bezier
			case 'Q':
				x1 = eatNum(); y1 = -eatNum();
			case 'T':
				if (activeCmd === 'T') {
					x1 = 2 * x - x1;
					y1 = 2 * y - y1;
				}
				nx = eatNum();
				ny = -eatNum();
				path.quadraticCurveTo(x1, y1, nx, ny);
				x = nx;
				y = ny;
				break;
			case 'q':
				x1 = x + eatNum();
				y1 = y + -eatNum();
			case 't':
				if (activeCmd === 't') {
					x1 = 2 * x - x1;
					y1 = 2 * y - y1;
				}
				nx = x + eatNum();
				ny = y + -eatNum();
				path.quadraticCurveTo(x1, y1, nx, ny);
				x = nx; y = ny;
				break;
			// - elliptical arc
			case 'A':
				rx = eatNum();
				ry = eatNum();
				xar = eatNum() * DEGS_TO_RADS;
				laf = eatNum();
				sf = eatNum();
				nx = eatNum();
				ny = -eatNum();
				if (rx !== ry) {
					console.warn("Forcing elliptical arc to be a circular one :(",
						rx, ry);
				}
				// SVG implementation notes does all the math for us! woo!
				// http://www.w3.org/TR/SVG/implnote.html#ArcImplementationNotes
				// step1, using x1 as x1'
				x1 = Math.cos(xar) * (x - nx) / 2 + Math.sin(xar) * (y - ny) / 2;
				y1 = -Math.sin(xar) * (x - nx) / 2 + Math.cos(xar) * (y - ny) / 2;
				// step 2, using x2 as cx'
				var norm = Math.sqrt(
					 (rx*rx * ry*ry - rx*rx * y1*y1 - ry*ry * x1*x1) /
					 (rx*rx * y1*y1 + ry*ry * x1*x1));
				if (laf === sf)
					norm = -norm;
				x2 = norm * rx * y1 / ry;
				y2 = norm * -ry * x1 / rx;
				// step 3
				cx = Math.cos(xar) * x2 - Math.sin(xar) * y2 + (x + nx) / 2;
				cy = Math.sin(xar) * x2 + Math.cos(xar) * y2 + (y + ny) / 2;
				var u = new THREE.Vector2(1, 0),
					v = new THREE.Vector2((x1 - x2) / rx,
					                      (y1 - y2) / ry);
				var startAng = Math.acos(u.dot(v) / u.length() / v.length());
				if (u.x * v.y - u.y * v.x < 0)
					startAng = -startAng;
				// we can reuse 'v' from start angle as our 'u' for delta angle
				u.x = (-x1 - x2) / rx;
				u.y = (-y1 - y2) / ry;
				var deltaAng = Math.acos(v.dot(u) / v.length() / u.length());
				// This normalization ends up making our curves fail to triangulate...
				if (v.x * u.y - v.y * u.x < 0)
					deltaAng = -deltaAng;
				if (!sf && deltaAng > 0)
					deltaAng -= Math.PI * 2;
				if (sf && deltaAng < 0)
					deltaAng += Math.PI * 2;
				path.absarc(cx, cy, rx, startAng, startAng + deltaAng, sf);
				x = nx;
				y = ny;
				break;
			default:
        if(activeCmd == ' '){
          break;
        }
				throw new Error("weird path command: " + activeCmd);
		}
		// just reissue the command
		if (canRepeat && nextIsNum())
			continue;
		activeCmd = pathStr[idx++];
	}
	return path;
}

// from gist
// https://gist.github.com/gabrielflorit/3758456
function createShape( geometry, color, x, y, z, rx, ry, rz, s ) {
  // flat shape

 // var geometry = new THREE.ShapeGeometry( shape );
  var material = new THREE.MeshBasicMaterial({
    color: color,
    side: THREE.DoubleSide,
    overdraw: true
  });

  var mesh = new THREE.Mesh( geometry, material );
  mesh.position.set( x, y, z );
  mesh.rotation.set( rx, ry, rz );
  mesh.scale.set( s, s, s );

  return mesh;
}

// メイン
window.addEventListener('load',function(){

  var WIDTH = window.innerWidth, HEIGHT = window.innerHeight;


  var renderer = new THREE.WebGLRenderer({ antialias: false, sortObjects: true });
  renderer.setSize(WIDTH, HEIGHT);
  renderer.setClearColor(0x000000, 1);
  renderer.domElement.id = 'console';
  renderer.domElement.className = 'console';
  renderer.domElement.style.zIndex = 0;

  d3.select('#content').node().appendChild(renderer.domElement);

  renderer.clear();
  // シーンの作成
  var scene = new THREE.Scene();

  // カメラの作成
  var camera = new THREE.PerspectiveCamera(90.0, WIDTH / HEIGHT);
  camera.position.x = 0.0;
  camera.position.y = 0.0;
  camera.position.z = (WIDTH / 2.0) * HEIGHT / WIDTH;
  camera.lookAt(new THREE.Vector3(0.0, 0.0, 0.0));

  var horseGroups = [];
  window.addEventListener('resize',function()
  {
    WIDTH = window.innerWidth;
    HEIGHT = window.innerHeight;
    renderer.setSize(WIDTH,HEIGHT);
    camera.aspect = WIDTH / HEIGHT;
    camera.position.z = (WIDTH / 2.0) * HEIGHT / WIDTH;
    camera.updateProjectionMatrix();
  });


  var xml = Q.nfbind(d3.xml);
  var gto;
  // SVGファイルから馬のメッシュを作る
  xml('./horse.svg','image/svg+xml')
  .then(function(svg){
    try {
      document.querySelector('#svg').appendChild(svg.firstChild);
      var shapes = [];
      var loader = new THREE.BufferGeometryLoader();
      d3.select('#svg').selectAll('g').each(function(){
        var g = d3.select(this);
        var boundingBox = g.select('rect').node();
        var paths = g.selectAll('path');
        var holes = [];
        var shape = null;
        var shapeId = null;
        paths.each(function(){
          // 馬セルの取り出しと座標補正
          var path = d3.select(this);
          console.log(path.node().pathSegList.getItem(0).x);
          convertToRelative(path.node());
          var m = path.node().createSVGPathSegMovetoRel
                  (path.node().pathSegList.getItem(0).x - boundingBox.x.baseVal.value - boundingBox.width.baseVal.value / 2.0,
                  path.node().pathSegList.getItem(0).y - boundingBox.y.baseVal.value - boundingBox.height.baseVal.value / 2.0
                  );
          path.node().pathSegList.replaceItem(m,0);
          path.attr('d',path.attr('d'));
          // svg pathからthree.js shapeへの変換
          var threePath = transformSVGPath(path.attr('d'));
          // シリアライズテスト //
          // シリアライズ
          var threePathString = JSON.stringify(threePath);
          console.log(threePathString.length);
          // デシリアライズ
          shape = SF.deserialize(JSON.parse(threePathString)).toShapes();
          shapeId = path.attr('id');
        });

        var shapeGeometry = new THREE.ShapeGeometry( shape );
        shapes.push({name:shapeId,shape:shapeGeometry});
      });
      var ggroup = new THREE.Group();
      for(var i = 0; i < 1;++i){
        var group = new THREE.Group();
        shapes.forEach(function(sm){
          var shapeMesh = createShape(sm.shape,0xFFFF00,0,0,0,0,0,0,1.0);
          shapeMesh.visible = false;
          shapeMesh.name = sm.name;
            group.add(shapeMesh);
          });
        group.position.x = 0;
        group.position.y = 0;
//        group.position.z = 2000.0 * Math.random() - 1000.0;
        horseGroups.push(group);
        ggroup.add(group);
      }
      scene.add(ggroup);
      ggroup.name = 'world';

      d3.select('#svg').remove();
    } catch (e) {
      console.log(e + '\n' + e.stack);
    }

    //レンダリング
    var r = 0.0;
    (function render(index){
      if(index > 10.0) index = 0.0;
      var idx = parseInt(index,10);
      for(var i = 0,end = horseGroups.length;i< end;++i){
        var g = horseGroups[i];
        g.getObjectByName('horse' + ('00' + idx.toString(10)).slice(-2)).visible = true;
        if(idx == 0){
          g.getObjectByName('horse10').visible = false;
        } else {
          g.getObjectByName('horse' + ('00' + (idx - 1).toString(10)).slice(-2)).visible = false;
        }
      }
      renderer.render(scene,camera);
      index += 0.25;
      requestAnimationFrame(render.bind(null,index));
    })(0);
//    console.log(d3.select('#svg').html());
  });
});

/dev/horse/0007/package.json

{
  "name": "5e85dd1519d7b1d09626",
  "version": "1.0.0",
  "description": "SVGからThree.jsのgeometryへの変換",
  "main": "app://localhost:35729/index.html",
  "scripts": {
    "test": "echo \"Error: no test specified\" && exit 1"
  },
  "repository": {
    "type": "git",
    "url": "git@gist.github.com:/892dc3eb0775c70130b6.git"
  },
  "keywords": [
    "Node-Webkit"
  ],
  "author": "S.F.",
  "license": "MIT",
  "devDependencies": {
  },
  "dependencies": {
    "q": "^1.1.2",
    "request": "^2.53.0"
  },
  "window": {
    "toolbar": true,
    "width": 1280,
    "height": 720
  }
}

/dev/horse/0007/path-data-polyfill.js


// @info
//   Polyfill for SVG getPathData() and setPathData() methods. Based on:
//   - SVGPathSeg polyfill by Philip Rogers (MIT License)
//     https://github.com/progers/pathseg
//   - SVGPathNormalizer by Tadahisa Motooka (MIT License)
//     https://github.com/motooka/SVGPathNormalizer/tree/master/src
//   - arcToCubicCurves() by Dmitry Baranovskiy (MIT License)
//     https://github.com/DmitryBaranovskiy/raphael/blob/v2.1.1/raphael.core.js#L1837
// @author
//   Jarosław Foksa
// @license
//   MIT License
if (!SVGPathElement.prototype.getPathData || !SVGPathElement.prototype.setPathData) {
  (function() {
    var commandsMap = {
      "Z":"Z", "M":"M", "L":"L", "C":"C", "Q":"Q", "A":"A", "H":"H", "V":"V", "S":"S", "T":"T",
      "z":"Z", "m":"m", "l":"l", "c":"c", "q":"q", "a":"a", "h":"h", "v":"v", "s":"s", "t":"t"
    };

    var Source = function(string) {
      this._string = string;
      this._currentIndex = 0;
      this._endIndex = this._string.length;
      this._prevCommand = null;
      this._skipOptionalSpaces();
    };

    var isIE = window.navigator.userAgent.indexOf("MSIE ") !== -1;

    Source.prototype = {
      parseSegment: function() {
        var char = this._string[this._currentIndex];
        var command = commandsMap[char] ? commandsMap[char] : null;

        if (command === null) {
          // Possibly an implicit command. Not allowed if this is the first command.
          if (this._prevCommand === null) {
            return null;
          }

          // Check for remaining coordinates in the current command.
          if (
            (char === "+" || char === "-" || char === "." || (char >= "0" && char <= "9")) && this._prevCommand !== "Z"
          ) {
            if (this._prevCommand === "M") {
              command = "L";
            }
            else if (this._prevCommand === "m") {
              command = "l";
            }
            else {
              command = this._prevCommand;
            }
          }
          else {
            command = null;
          }

          if (command === null) {
            return null;
          }
        }
        else {
          this._currentIndex += 1;
        }

        this._prevCommand = command;

        var values = null;
        var cmd = command.toUpperCase();

        if (cmd === "H" || cmd === "V") {
          values = [this._parseNumber()];
        }
        else if (cmd === "M" || cmd === "L" || cmd === "T") {
          values = [this._parseNumber(), this._parseNumber()];
        }
        else if (cmd === "S" || cmd === "Q") {
          values = [this._parseNumber(), this._parseNumber(), this._parseNumber(), this._parseNumber()];
        }
        else if (cmd === "C") {
          values = [
            this._parseNumber(),
            this._parseNumber(),
            this._parseNumber(),
            this._parseNumber(),
            this._parseNumber(),
            this._parseNumber()
          ];
        }
        else if (cmd === "A") {
          values = [
            this._parseNumber(),
            this._parseNumber(),
            this._parseNumber(),
            this._parseArcFlag(),
            this._parseArcFlag(),
            this._parseNumber(),
            this._parseNumber()
          ];
        }
        else if (cmd === "Z") {
          this._skipOptionalSpaces();
          values = [];
        }

        if (values === null || values.indexOf(null) >= 0) {
          // Unknown command or known command with invalid values
          return null;
        }
        else {
          return {type: command, values: values};
        }
      },

      hasMoreData: function() {
        return this._currentIndex < this._endIndex;
      },

      peekSegmentType: function() {
        var char = this._string[this._currentIndex];
        return commandsMap[char] ? commandsMap[char] : null;
      },

      initialCommandIsMoveTo: function() {
        // If the path is empty it is still valid, so return true.
        if (!this.hasMoreData()) {
          return true;
        }

        var command = this.peekSegmentType();
        // Path must start with moveTo.
        return command === "M" || command === "m";
      },

      _isCurrentSpace: function() {
        var char = this._string[this._currentIndex];
        return char <= " " && (char === " " || char === "\n" || char === "\t" || char === "\r" || char === "\f");
      },

      _skipOptionalSpaces: function() {
        while (this._currentIndex < this._endIndex && this._isCurrentSpace()) {
          this._currentIndex += 1;
        }

        return this._currentIndex < this._endIndex;
      },

      _skipOptionalSpacesOrDelimiter: function() {
        if (
          this._currentIndex < this._endIndex &&
          !this._isCurrentSpace() &&
          this._string[this._currentIndex] !== ","
        ) {
          return false;
        }

        if (this._skipOptionalSpaces()) {
          if (this._currentIndex < this._endIndex && this._string[this._currentIndex] === ",") {
            this._currentIndex += 1;
            this._skipOptionalSpaces();
          }
        }
        return this._currentIndex < this._endIndex;
      },

      // Parse a number from an SVG path. This very closely follows genericParseNumber(...) from
      // Source/core/svg/SVGParserUtilities.cpp.
      // Spec: http://www.w3.org/TR/SVG11/single-page.html#paths-PathDataBNF
      _parseNumber: function() {
        var exponent = 0;
        var integer = 0;
        var frac = 1;
        var decimal = 0;
        var sign = 1;
        var expsign = 1;
        var startIndex = this._currentIndex;

        this._skipOptionalSpaces();

        // Read the sign.
        if (this._currentIndex < this._endIndex && this._string[this._currentIndex] === "+") {
          this._currentIndex += 1;
        }
        else if (this._currentIndex < this._endIndex && this._string[this._currentIndex] === "-") {
          this._currentIndex += 1;
          sign = -1;
        }

        if (
          this._currentIndex === this._endIndex ||
          (
            (this._string[this._currentIndex] < "0" || this._string[this._currentIndex] > "9") &&
            this._string[this._currentIndex] !== "."
          )
        ) {
          // The first character of a number must be one of [0-9+-.].
          return null;
        }

        // Read the integer part, build right-to-left.
        var startIntPartIndex = this._currentIndex;

        while (
          this._currentIndex < this._endIndex &&
          this._string[this._currentIndex] >= "0" &&
          this._string[this._currentIndex] <= "9"
        ) {
          this._currentIndex += 1; // Advance to first non-digit.
        }

        if (this._currentIndex !== startIntPartIndex) {
          var scanIntPartIndex = this._currentIndex - 1;
          var multiplier = 1;

          while (scanIntPartIndex >= startIntPartIndex) {
            integer += multiplier * (this._string[scanIntPartIndex] - "0");
            scanIntPartIndex -= 1;
            multiplier *= 10;
          }
        }

        // Read the decimals.
        if (this._currentIndex < this._endIndex && this._string[this._currentIndex] === ".") {
          this._currentIndex += 1;

          // There must be a least one digit following the .
          if (
            this._currentIndex >= this._endIndex ||
            this._string[this._currentIndex] < "0" ||
            this._string[this._currentIndex] > "9"
          ) {
            return null;
          }

          while (
            this._currentIndex < this._endIndex &&
            this._string[this._currentIndex] >= "0" &&
            this._string[this._currentIndex] <= "9"
          ) {
            frac *= 10;
            decimal += (this._string.charAt(this._currentIndex) - "0") / frac;
            this._currentIndex += 1;
          }
        }

        // Read the exponent part.
        if (
          this._currentIndex !== startIndex &&
          this._currentIndex + 1 < this._endIndex &&
          (this._string[this._currentIndex] === "e" || this._string[this._currentIndex] === "E") &&
          (this._string[this._currentIndex + 1] !== "x" && this._string[this._currentIndex + 1] !== "m")
        ) {
          this._currentIndex += 1;

          // Read the sign of the exponent.
          if (this._string[this._currentIndex] === "+") {
            this._currentIndex += 1;
          }
          else if (this._string[this._currentIndex] === "-") {
            this._currentIndex += 1;
            expsign = -1;
          }

          // There must be an exponent.
          if (
            this._currentIndex >= this._endIndex ||
            this._string[this._currentIndex] < "0" ||
            this._string[this._currentIndex] > "9"
          ) {
            return null;
          }

          while (
            this._currentIndex < this._endIndex &&
            this._string[this._currentIndex] >= "0" &&
            this._string[this._currentIndex] <= "9"
          ) {
            exponent *= 10;
            exponent += (this._string[this._currentIndex] - "0");
            this._currentIndex += 1;
          }
        }

        var number = integer + decimal;
        number *= sign;

        if (exponent) {
          number *= Math.pow(10, expsign * exponent);
        }

        if (startIndex === this._currentIndex) {
          return null;
        }

        this._skipOptionalSpacesOrDelimiter();

        return number;
      },

      _parseArcFlag: function() {
        if (this._currentIndex >= this._endIndex) {
          return null;
        }

        var flag = null;
        var flagChar = this._string[this._currentIndex];

        this._currentIndex += 1;

        if (flagChar === "0") {
          flag = 0;
        }
        else if (flagChar === "1") {
          flag = 1;
        }
        else {
          return null;
        }

        this._skipOptionalSpacesOrDelimiter();
        return flag;
      }
    };

    var parsePathDataString = function(string) {
      if (!string || string.length === 0) return [];

      var source = new Source(string);
      var pathData = [];

      if (source.initialCommandIsMoveTo()) {
        while (source.hasMoreData()) {
          var pathSeg = source.parseSegment();

          if (pathSeg === null) {
            break;
          }
          else {
            pathData.push(pathSeg);
          }
        }
      }

      return pathData;
    }

    var setAttribute = SVGPathElement.prototype.setAttribute;
    var removeAttribute = SVGPathElement.prototype.removeAttribute;

    var $cachedPathData = window.Symbol ? Symbol() : "__cachedPathData";
    var $cachedNormalizedPathData = window.Symbol ? Symbol() : "__cachedNormalizedPathData";

    // @info
    //   Get an array of corresponding cubic bezier curve parameters for given arc curve paramters.
    var arcToCubicCurves = function(x1, y1, x2, y2, r1, r2, angle, largeArcFlag, sweepFlag, _recursive) {
      var degToRad = function(degrees) {
        return (Math.PI * degrees) / 180;
      };

      var rotate = function(x, y, angleRad) {
        var X = x * Math.cos(angleRad) - y * Math.sin(angleRad);
        var Y = x * Math.sin(angleRad) + y * Math.cos(angleRad);
        return {x: X, y: Y};
      };

      var angleRad = degToRad(angle);
      var params = [];
      var f1, f2, cx, cy;

      if (_recursive) {
        f1 = _recursive[0];
        f2 = _recursive[1];
        cx = _recursive[2];
        cy = _recursive[3];
      }
      else {
        var p1 = rotate(x1, y1, -angleRad);
        x1 = p1.x;
        y1 = p1.y;

        var p2 = rotate(x2, y2, -angleRad);
        x2 = p2.x;
        y2 = p2.y;

        var x = (x1 - x2) / 2;
        var y = (y1 - y2) / 2;
        var h = (x * x) / (r1 * r1) + (y * y) / (r2 * r2);

        if (h > 1) {
          h = Math.sqrt(h);
          r1 = h * r1;
          r2 = h * r2;
        }

        var sign;

        if (largeArcFlag === sweepFlag) {
          sign = -1;
        }
        else {
          sign = 1;
        }

        var r1Pow = r1 * r1;
        var r2Pow = r2 * r2;

        var left = r1Pow * r2Pow - r1Pow * y * y - r2Pow * x * x;
        var right = r1Pow * y * y + r2Pow * x * x;

        var k = sign * Math.sqrt(Math.abs(left/right));

        cx = k * r1 * y / r2 + (x1 + x2) / 2;
        cy = k * -r2 * x / r1 + (y1 + y2) / 2;

        f1 = Math.asin(parseFloat(((y1 - cy) / r2).toFixed(9)));
        f2 = Math.asin(parseFloat(((y2 - cy) / r2).toFixed(9)));

        if (x1 < cx) {
          f1 = Math.PI - f1;
        }
        if (x2 < cx) {
          f2 = Math.PI - f2;
        }

        if (f1 < 0) {
          f1 = Math.PI * 2 + f1;
        }
        if (f2 < 0) {
          f2 = Math.PI * 2 + f2;
        }

        if (sweepFlag && f1 > f2) {
          f1 = f1 - Math.PI * 2;
        }
        if (!sweepFlag && f2 > f1) {
          f2 = f2 - Math.PI * 2;
        }
      }

      var df = f2 - f1;

      if (Math.abs(df) > (Math.PI * 120 / 180)) {
        var f2old = f2;
        var x2old = x2;
        var y2old = y2;

        if (sweepFlag && f2 > f1) {
          f2 = f1 + (Math.PI * 120 / 180) * (1);
        }
        else {
          f2 = f1 + (Math.PI * 120 / 180) * (-1);
        }

        x2 = cx + r1 * Math.cos(f2);
        y2 = cy + r2 * Math.sin(f2);
        params = arcToCubicCurves(x2, y2, x2old, y2old, r1, r2, angle, 0, sweepFlag, [f2, f2old, cx, cy]);
      }

      df = f2 - f1;

      var c1 = Math.cos(f1);
      var s1 = Math.sin(f1);
      var c2 = Math.cos(f2);
      var s2 = Math.sin(f2);
      var t = Math.tan(df / 4);
      var hx = 4 / 3 * r1 * t;
      var hy = 4 / 3 * r2 * t;

      var m1 = [x1, y1];
      var m2 = [x1 + hx * s1, y1 - hy * c1];
      var m3 = [x2 + hx * s2, y2 - hy * c2];
      var m4 = [x2, y2];

      m2[0] = 2 * m1[0] - m2[0];
      m2[1] = 2 * m1[1] - m2[1];

      if (_recursive) {
        return [m2, m3, m4].concat(params);
      }
      else {
        params = [m2, m3, m4].concat(params).join().split(",");

        var curves = [];
        var curveParams = [];

        params.forEach( function(param, i) {
          if (i % 2) {
            curveParams.push(rotate(params[i - 1], params[i], angleRad).y);
          }
          else {
            curveParams.push(rotate(params[i], params[i + 1], angleRad).x);
          }

          if (curveParams.length === 6) {
            curves.push(curveParams);
            curveParams = [];
          }
        });

        return curves;
      }
    };

    var clonePathData = function(pathData) {
      return pathData.map( function(seg) {
        return {type: seg.type, values: Array.prototype.slice.call(seg.values)}
      });
    };

    // @info
    //   Takes any path data, returns path data that consists only from absolute commands.
    var absolutizePathData = function(pathData) {
      var absolutizedPathData = [];

      var currentX = null;
      var currentY = null;

      var subpathX = null;
      var subpathY = null;

      pathData.forEach( function(seg) {
        var type = seg.type;

        if (type === "M") {
          var x = seg.values[0];
          var y = seg.values[1];

          absolutizedPathData.push({type: "M", values: [x, y]});

          subpathX = x;
          subpathY = y;

          currentX = x;
          currentY = y;
        }

        else if (type === "m") {
          var x = currentX + seg.values[0];
          var y = currentY + seg.values[1];

          absolutizedPathData.push({type: "M", values: [x, y]});

          subpathX = x;
          subpathY = y;

          currentX = x;
          currentY = y;
        }

        else if (type === "L") {
          var x = seg.values[0];
          var y = seg.values[1];

          absolutizedPathData.push({type: "L", values: [x, y]});

          currentX = x;
          currentY = y;
        }

        else if (type === "l") {
          var x = currentX + seg.values[0];
          var y = currentY + seg.values[1];

          absolutizedPathData.push({type: "L", values: [x, y]});

          currentX = x;
          currentY = y;
        }

        else if (type === "C") {
          var x1 = seg.values[0];
          var y1 = seg.values[1];
          var x2 = seg.values[2];
          var y2 = seg.values[3];
          var x = seg.values[4];
          var y = seg.values[5];

          absolutizedPathData.push({type: "C", values: [x1, y1, x2, y2, x, y]});

          currentX = x;
          currentY = y;
        }

        else if (type === "c") {
          var x1 = currentX + seg.values[0];
          var y1 = currentY + seg.values[1];
          var x2 = currentX + seg.values[2];
          var y2 = currentY + seg.values[3];
          var x = currentX + seg.values[4];
          var y = currentY + seg.values[5];

          absolutizedPathData.push({type: "C", values: [x1, y1, x2, y2, x, y]});

          currentX = x;
          currentY = y;
        }

        else if (type === "Q") {
          var x1 = seg.values[0];
          var y1 = seg.values[1];
          var x = seg.values[2];
          var y = seg.values[3];

          absolutizedPathData.push({type: "Q", values: [x1, y1, x, y]});

          currentX = x;
          currentY = y;
        }

        else if (type === "q") {
          var x1 = currentX + seg.values[0];
          var y1 = currentY + seg.values[1];
          var x = currentX + seg.values[2];
          var y = currentY + seg.values[3];

          absolutizedPathData.push({type: "Q", values: [x1, y1, x, y]});

          currentX = x;
          currentY = y;
        }

        else if (type === "A") {
          var x = seg.values[5];
          var y = seg.values[6];

          absolutizedPathData.push({
            type: "A",
            values: [seg.values[0], seg.values[1], seg.values[2], seg.values[3], seg.values[4], x, y]
          });

          currentX = x;
          currentY = y;
        }

        else if (type === "a") {
          var x = currentX + seg.values[5];
          var y = currentY + seg.values[6];

          absolutizedPathData.push({
            type: "A",
            values: [seg.values[0], seg.values[1], seg.values[2], seg.values[3], seg.values[4], x, y]
          });

          currentX = x;
          currentY = y;
        }

        else if (type === "H") {
          var x = seg.values[0];
          absolutizedPathData.push({type: "H", values: [x]});
          currentX = x;
        }

        else if (type === "h") {
          var x = currentX + seg.values[0];
          absolutizedPathData.push({type: "H", values: [x]});
          currentX = x;
        }

        else if (type === "V") {
          var y = seg.values[0];
          absolutizedPathData.push({type: "V", values: [y]});
          currentY = y;
        }

        else if (type === "v") {
          var y = currentY + seg.values[0];
          absolutizedPathData.push({type: "V", values: [y]});
          currentY = y;
        }

        else if (type === "S") {
          var x2 = seg.values[0];
          var y2 = seg.values[1];
          var x = seg.values[2];
          var y = seg.values[3];

          absolutizedPathData.push({type: "S", values: [x2, y2, x, y]});

          currentX = x;
          currentY = y;
        }

        else if (type === "s") {
          var x2 = currentX + seg.values[0];
          var y2 = currentY + seg.values[1];
          var x = currentX + seg.values[2];
          var y = currentY + seg.values[3];

          absolutizedPathData.push({type: "S", values: [x2, y2, x, y]});

          currentX = x;
          currentY = y;
        }

        else if (type === "T") {
          var x = seg.values[0];
          var y = seg.values[1]

          absolutizedPathData.push({type: "T", values: [x, y]});

          currentX = x;
          currentY = y;
        }

        else if (type === "t") {
          var x = currentX + seg.values[0];
          var y = currentY + seg.values[1]

          absolutizedPathData.push({type: "T", values: [x, y]});

          currentX = x;
          currentY = y;
        }

        else if (type === "Z" || type === "z") {
          absolutizedPathData.push({type: "Z", values: []});

          currentX = subpathX;
          currentY = subpathY;
        }
      });

      return absolutizedPathData;
    };

    // @info
    //   Takes path data that consists only from absolute commands, returns path data that consists only from
    //   "M", "L", "C" and "Z" commands.
    var reducePathData = function(pathData) {
      var reducedPathData = [];
      var lastType = null;

      var lastControlX = null;
      var lastControlY = null;

      var currentX = null;
      var currentY = null;

      var subpathX = null;
      var subpathY = null;

      pathData.forEach( function(seg) {
        if (seg.type === "M") {
          var x = seg.values[0];
          var y = seg.values[1];

          reducedPathData.push({type: "M", values: [x, y]});

          subpathX = x;
          subpathY = y;

          currentX = x;
          currentY = y;
        }

        else if (seg.type === "C") {
          var x1 = seg.values[0];
          var y1 = seg.values[1];
          var x2 = seg.values[2];
          var y2 = seg.values[3];
          var x = seg.values[4];
          var y = seg.values[5];

          reducedPathData.push({type: "C", values: [x1, y1, x2, y2, x, y]});

          lastControlX = x2;
          lastControlY = y2;

          currentX = x;
          currentY = y;
        }

        else if (seg.type === "L") {
          var x = seg.values[0];
          var y = seg.values[1];

          reducedPathData.push({type: "L", values: [x, y]});

          currentX = x;
          currentY = y;
        }

        else if (seg.type === "H") {
          var x = seg.values[0];

          reducedPathData.push({type: "L", values: [x, currentY]});

          currentX = x;
        }

        else if (seg.type === "V") {
          var y = seg.values[0];

          reducedPathData.push({type: "L", values: [currentX, y]});

          currentY = y;
        }

        else if (seg.type === "S") {
          var x2 = seg.values[0];
          var y2 = seg.values[1];
          var x = seg.values[2];
          var y = seg.values[3];

          var cx1, cy1;

          if (lastType === "C" || lastType === "S") {
            cx1 = currentX + (currentX - lastControlX);
            cy1 = currentY + (currentY - lastControlY);
          }
          else {
            cx1 = currentX;
            cy1 = currentY;
          }

          reducedPathData.push({type: "C", values: [cx1, cy1, x2, y2, x, y]});

          lastControlX = x2;
          lastControlY = y2;

          currentX = x;
          currentY = y;
        }

        else if (seg.type === "T") {
          var x = seg.values[0];
          var y = seg.values[1];

          var x1, y1;

          if (lastType === "Q" || lastType === "T") {
            x1 = currentX + (currentX - lastControlX);
            y1 = currentY + (currentY - lastControlY);
          }
          else {
            x1 = currentX;
            y1 = currentY;
          }

          var cx1 = currentX + 2 * (x1 - currentX) / 3;
          var cy1 = currentY + 2 * (y1 - currentY) / 3;
          var cx2 = x + 2 * (x1 - x) / 3;
          var cy2 = y + 2 * (y1 - y) / 3;

          reducedPathData.push({type: "C", values: [cx1, cy1, cx2, cy2, x, y]});

          lastControlX = x1;
          lastControlY = y1;

          currentX = x;
          currentY = y;
        }

        else if (seg.type === "Q") {
          var x1 = seg.values[0];
          var y1 = seg.values[1];
          var x = seg.values[2];
          var y = seg.values[3];

          var cx1 = currentX + 2 * (x1 - currentX) / 3;
          var cy1 = currentY + 2 * (y1 - currentY) / 3;
          var cx2 = x + 2 * (x1 - x) / 3;
          var cy2 = y + 2 * (y1 - y) / 3;

          reducedPathData.push({type: "C", values: [cx1, cy1, cx2, cy2, x, y]});

          lastControlX = x1;
          lastControlY = y1;

          currentX = x;
          currentY = y;
        }

        else if (seg.type === "A") {
          var r1 = seg.values[0];
          var r2 = seg.values[1];
          var angle = seg.values[2];
          var largeArcFlag = seg.values[3];
          var sweepFlag = seg.values[4];
          var x = seg.values[5];
          var y = seg.values[6];

          if (r1 === 0 || r2 === 0) {
            reducedPathData.push({type: "C", values: [currentX, currentY, x, y, x, y]});

            currentX = x;
            currentY = y;
          }
          else {
            if (currentX !== x || currentY !== y) {
              var curves = arcToCubicCurves(currentX, currentY, x, y, r1, r2, angle, largeArcFlag, sweepFlag);

              curves.forEach( function(curve) {
                reducedPathData.push({type: "C", values: curve});

                currentX = x;
                currentY = y;
              });
            }
          }
        }

        else if (seg.type === "Z") {
          reducedPathData.push(seg);

          currentX = subpathX;
          currentY = subpathY;
        }

        lastType = seg.type;
      });

      return reducedPathData;
    };

    SVGPathElement.prototype.setAttribute = function(name, value) {
      if (name === "d") {
        this[$cachedPathData] = null;
        this[$cachedNormalizedPathData] = null;
      }

      setAttribute.call(this, name, value);
    };

    SVGPathElement.prototype.removeAttribute = function(name, value) {
      if (name === "d") {
        this[$cachedPathData] = null;
        this[$cachedNormalizedPathData] = null;
      }

      removeAttribute.call(this, name);
    };

    SVGPathElement.prototype.getPathData = function(options) {
      if (options && options.normalize) {
        if (this[$cachedNormalizedPathData]) {
          return clonePathData(this[$cachedNormalizedPathData]);
        }
        else {
          var pathData;

          if (this[$cachedPathData]) {
            pathData = clonePathData(this[$cachedPathData]);
          }
          else {
            pathData = parsePathDataString(this.getAttribute("d") || "");
            this[$cachedPathData] = clonePathData(pathData);
          }

          var normalizedPathData = reducePathData(absolutizePathData(pathData));
          this[$cachedNormalizedPathData] = clonePathData(normalizedPathData);
          return normalizedPathData;
        }
      }
      else {
        if (this[$cachedPathData]) {
          return clonePathData(this[$cachedPathData]);
        }
        else {
          var pathData = parsePathDataString(this.getAttribute("d") || "");
          this[$cachedPathData] = clonePathData(pathData);
          return pathData;
        }
      }
    };

    SVGPathElement.prototype.setPathData = function(pathData) {
      if (pathData.length === 0) {
        if (isIE) {
          // @bugfix https://github.com/mbostock/d3/issues/1737
          this.setAttribute("d", "");
        }
        else {
          this.removeAttribute("d");
        }
      }
      else {
        var d = "";

        for (var i = 0, l = pathData.length; i < l; i += 1) {
          var seg = pathData[i];

          if (i > 0) {
            d += " ";
          }

          d += seg.type;

          if (seg.values && seg.values.length > 0) {
            d += " " + seg.values.join(" ");
          }
        }

        this.setAttribute("d", d);
      }
    };

    SVGRectElement.prototype.getPathData = function(options) {
      var x = this.x.baseVal.value;
      var y = this.y.baseVal.value;
      var width = this.width.baseVal.value;
      var height = this.height.baseVal.value;
      var rx = this.hasAttribute("rx") ? this.rx.baseVal.value : this.ry.baseVal.value;
      var ry = this.hasAttribute("ry") ? this.ry.baseVal.value : this.rx.baseVal.value;

      if (rx > width / 2) {
        rx = width / 2;
      }

      if (ry > height / 2) {
        ry = height / 2;
      }

      var pathData = [
        {type: "M", values: [x+rx, y]},
        {type: "H", values: [x+width-rx]},
        {type: "A", values: [rx, ry, 0, 0, 1, x+width, y+ry]},
        {type: "V", values: [y+height-ry]},
        {type: "A", values: [rx, ry, 0, 0, 1, x+width-rx, y+height]},
        {type: "H", values: [x+rx]},
        {type: "A", values: [rx, ry, 0, 0, 1, x, y+height-ry]},
        {type: "V", values: [y+ry]},
        {type: "A", values: [rx, ry, 0, 0, 1, x+rx, y]},
        {type: "Z", values: []}
      ];

      // Get rid of redundant "A" segs when either rx or ry is 0
      pathData = pathData.filter(function(s) {
        return s.type === "A" && (s.values[0] === 0 || s.values[1] === 0) ? false : true;
      });

      if (options && options.normalize === true) {
        pathData = reducePathData(pathData);
      }

      return pathData;
    };

    SVGCircleElement.prototype.getPathData = function(options) {
      var cx = this.cx.baseVal.value;
      var cy = this.cy.baseVal.value;
      var r = this.r.baseVal.value;

      var pathData = [
        { type: "M",  values: [cx + r, cy] },
        { type: "A",  values: [r, r, 0, 0, 1, cx, cy+r] },
        { type: "A",  values: [r, r, 0, 0, 1, cx-r, cy] },
        { type: "A",  values: [r, r, 0, 0, 1, cx, cy-r] },
        { type: "A",  values: [r, r, 0, 0, 1, cx+r, cy] },
        { type: "Z",  values: [] }
      ];

      if (options && options.normalize === true) {
        pathData = reducePathData(pathData);
      }

      return pathData;
    };

    SVGEllipseElement.prototype.getPathData = function(options) {
      var cx = this.cx.baseVal.value;
      var cy = this.cy.baseVal.value;
      var rx = this.rx.baseVal.value;
      var ry = this.ry.baseVal.value;

      var pathData = [
        { type: "M",  values: [cx + rx, cy] },
        { type: "A",  values: [rx, ry, 0, 0, 1, cx, cy+ry] },
        { type: "A",  values: [rx, ry, 0, 0, 1, cx-rx, cy] },
        { type: "A",  values: [rx, ry, 0, 0, 1, cx, cy-ry] },
        { type: "A",  values: [rx, ry, 0, 0, 1, cx+rx, cy] },
        { type: "Z",  values: [] }
      ];

      if (options && options.normalize === true) {
        pathData = reducePathData(pathData);
      }

      return pathData;
    };

    SVGLineElement.prototype.getPathData = function() {
      return [
        { type: "M", values: [this.x1.baseVal.value, this.y1.baseVal.value] },
        { type: "L", values: [this.x2.baseVal.value, this.y2.baseVal.value] }
      ];
    };

    SVGPolylineElement.prototype.getPathData = function() {
      var pathData = [];

      for (var i = 0; i < this.points.numberOfItems; i += 1) {
        var point = this.points.getItem(i);

        pathData.push({
          type: (i === 0 ? "M" : "L"),
          values: [point.x, point.y]
        });
      }

      return pathData;
    };

    SVGPolygonElement.prototype.getPathData = function() {
      var pathData = [];

      for (var i = 0; i < this.points.numberOfItems; i += 1) {
        var point = this.points.getItem(i);

        pathData.push({
          type: (i === 0 ? "M" : "L"),
          values: [point.x, point.y]
        });
      }

      pathData.push({
        type: "Z",
        values: []
      });

      return pathData;
    };
  })();
}

/dev/horse/0007/pathSerializer.js

//The MIT License (MIT)
//
//Copyright (c) 2015 Satoshi Fujiwara
//
//Permission is hereby granted, free of charge, to any person obtaining a copy
//of this software and associated documentation files (the "Software"), to deal
//in the Software without restriction, including without limitation the rights
//to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
//copies of the Software, and to permit persons to whom the Software is
//furnished to do so, subject to the following conditions:
//
//The above copyright notice and this permission notice shall be included in
//all copies or substantial portions of the Software.
//
//THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
//IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
//FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
//AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
//LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
//OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
//THE SOFTWARE.

/// <reference path="http://cdnjs.cloudflare.com/ajax/libs/d3/3.5.2/d3.js" />
/// <reference path="http://cdnjs.cloudflare.com/ajax/libs/three.js/r70/three.js" />
/// <reference path="..\intellisense\q.intellisense.js" />

"use strict";

// Node.js で動作しているか
(function () {
  var isNode = (typeof process !== "undefined" && typeof require !== "undefined");
  // ブラウザ上(非Node.js)で動作しているか
  var isBrowser = !isNode
  // node-webkitで動作しているか
  var isNodeWebkit;
  try {
    isNodeWebkit = isNode ? (typeof require('nw.gui') !== "undefined") : false;
  } catch (e) {
    isNodeWebkit = false;
  }

  if ((isBrowser || isNodeWebkit) && !window['SF']) {
    window.SF = {};
  }



  // http://blog.livedoor.jp/dankogai/archives/51756459.html より
  var getFunctionName = function(f){
    return 'name' in f
        ? f.name
        : (''+f).replace(/^\s*function\s*([^\(]*)[\S\s]+$/im, '$1');
  };

  var typeOf = function(that){
    if (that === null)      return 'Null';
    if (that === undefined) return 'Undefined';
    var tc = that.constructor;
    return typeof(tc) === 'function'
        ? getFunctionName(tc)
        : tc /* [object HTMLDocumentConstructor] など */;
  };

  function SerializationData(data,objInfo){
    this.meta = {type : objInfo.name};
    if(objInfo.transform){
      this.data = objInfo.transform(data);
    } else {
    this.data = {};
    for (var i in data) {
      if (typeof data[i] !== 'function') {
        this.data[i] = data[i].toJSON ? data[i].toJSON() : data[i];
      }
    }
    }
  }

  function makeFactory(constructor)
  {
    return function(json){
      return new (constructor.bind.apply(constructor,json.data));
    }
  }

  function makeFactory2(constructor){
    return function(json){
      var d = json.data;
      var params =  objArrays[json.meta.type].factory(d);
      var c = THREE[constructor].bind.apply(THREE[constructor],params);
      return new c();
    }
  }

  function makeParamArray(arr){
    return function(obj){
      return arr.map(function(d){
        return obj[d];
      });
    }
  }

  function toJSON(data,objInfo){
    return new SerializationData(data,objInfo);
  }

  function mapArray(array){
    if(array.meta){
      return array.data.map(function(d){
        return objArrays[array.meta.type].factory(d);
      });
    } else {
      return array.map(function(d){
        if(d.meta){
          return objArrays[d.meta.type].factory(d.data);
        } else {
          return d;
        }
        });
    }
  }

  // 対象オブジェクトのプロトタイプにtoJSONメソッドを定義する
  THREE.Array = function SFArray (name,array){
    this.meta = {type:name};
    this.data = array.map(function(d){
      return objArrays[name].transform(d) || d;
    });
  };

  // オブジェクト保存・生成クラス
  function ObjectInfo(objName,param){
    this.name = objName;
    if(param instanceof Array){
      this.toJSON = toJSON;
      this.transform = makeParamArray(param);
      this.factory = makeFactory(THREE[objName]);
    } else {
      this.toJSON = param.toJSON || toJSON;
      if(param.transform){
        if(param.transform instanceof Array){
          this.transform = makeParamArray(param.transform);
        } else {
          this.transform = param.transform;
        }
      }
      if('factory' in param){
        if(param.factory instanceof THREE[objName]){
          this.factory = makeFactory(param.factory);
        } else {
          this.factory = param.factory;
        }
      } else {
        this.factory = makeFactory(THREE[objName]);
      }
    }
  }

  // オブジェクト保存・生成情報配列
  var objArrays2 = [
    ['Array',{factory:mapArray}],
    ['Vector2',['x','y']],
    ['Vector3',['x','y','z']],
    ['EllipseCurve',['aX','aY','xRadius','yRadius','aStartAngle','aEndAngle','aClockwise']],
    ['ArcCurve',['aX', 'aY', 'xRadius', 'aStartAngle', 'aEndAngle', 'aClockwise']],
    ['ClosedSplineCurve3',
      {
        factory:function (json) {
          var d = json.data;
          if(d){
            var points = objArrays[d.meta.type].factory(d.data);
            return new THREE.ClosedSplineCurve3(points);
          }
          return new THREE.ClosedSplineCurve3();
        },
        transform: function(d){
          if(d.points){
            return new THREE.Array('Vector3',points);
          } else {
            return null;
          }
        }
      }],
    ['CubicBezierCurve',{factory: makeFactory2('CubicBezierCurve'),transform:function (o){
          return new THREE.Array('Vector2',[o.v0,o.v1,o.v2,o.v3]);
        }
      }
    ],
    ['CubicBezierCurve3',{
        factory: makeFactory2('CubicBezierCurve3'),
        transform:function(o){
          return new THREE.Array('Vector3',[o.v0,o.v1,o.v2,o.v3]);
        }
      }
    ],
    ['LineCurve',{
        factory: makeFactory2('LineCurve'),
        transform:function(o){
          return new THREE.Array('Vector2',[o.v1,o.v2]);
        }
      }],
    ['LineCurve3',{
        factory: makeFactory2('LineCurve3'),
        transform:function(o){
          return new THREE.Array('Vector3',[o.v1,o.v2]);
        }
      }],
    ['QuadraticBezierCurve',{
        factory: makeFactory2('QuadraticBezierCurve'),
        transform:function(o){
          return new THREE.Array('Vector2',[o.v0,o.v1,o.v2]);
        }
      }],
    ['QuadraticBezierCurve3',{
        factory: makeFactory2('QuadraticBezierCurve3'),
        transform:function(o){
          return new THREE.Array('Vector3',[o.v0,o.v1,o.v2]);
        }
      }],
    ['SplineCurve',
      {
        factory:function (json) {
          var d = json.data;
          if(d){
            var points = objArrays[d.meta.type].factory(d.data);
            return new THREE.SplineCurve(points);
          }
          return new THREE.SplineCurve();
        },
        transform: function(d){
          if(d.points){
            return new THREE.Array('Vector2',points);
          } else {
            return null;
          }
        }
      }],
    ['SplineCurve3',
      {
        factory:function (json) {
          var d = json.data;
          if(d){
            var points = objArrays[d.meta.type].factory(d.data);
            return new THREE.SplineCurve3(points);
          }
          return new THREE.SplineCurve3();
        },
        transform: function(d){
          if(d.points){
            return new THREE.Array('Vector3',points);
          } else {
            return null;
          }
        }
      }],
    ['CurvePath',
      {
        factory:function (json) {
          var d = json.data;
          var o = json.data;
          var instance = new THREE.CurvePath();
          if('curves' in o){
            var curves = mapArray(o.curves);
            instance.curves = curves;
          }
          if('bends' in o){
            var bends = mapArray(o.bends);
            instance.bends = bends;
          }
          instance.autoClose = o.autoClose;
          return instance;
        }
      }],
    ['Path',
      {
        factory:function (json) {
          var o = json.data;
          var instance = new THREE.Path();
          if('curves' in o){
            instance.curves = mapArray(o.curves);
          }
          if('bends' in o){
            instance.bends = mapArray(o.bends);
          }
          if('actions' in o){
            instance.actions = mapArray(o.actions);
          }
          instance.autoClose = o.autoClose;
          return instance;
        }
      }]
  ];

  var objArrays = {};

  objArrays2.forEach(function(d){
    console.log(d);
    objArrays[d[0]] = new ObjectInfo(d[0],d[1]);
  });

  for (var name in objArrays) {
    (function () {
      var name_ = name;
      var objInfo = objArrays[name_];
      var toJSON = objInfo.hasOwnProperty('toJSON') ? objInfo.toJSON : toJSONBase;
      THREE[name_].prototype.toJSON = function () {
        return toJSON(this, objInfo);
      };
    })();
  };

  function toJSONBase(obj, objInfo) {
    var json = {
      "meta": {
        "type": objInfo.name,
      },
      "data": {}
    };
    for (var i in obj) {
      if (typeof obj[i] !== 'function') {
        json.data[i] = obj[i].toJSON ? obj[i].toJSON() : obj[i];
      }
    }
    return json;
  }

  // Arrayを効率よくJSONデータ化
  function arrayToJSON(array,objInfo){
    if(this.length > 0){
      var json = {
        "meta": {
          "type": name,
        },
        "data": array.map(function(d){
          return ('toJSON' in d ) ? d.toJSON() : d;
        })
      }
      return json;
    } else {
      return this;
    }
  }

  SF.serialize = function(obj){
    var ret = JSON.stringify(obj);
    return ret;
  }

  SF.deserialize = function (json) {
    if (objArrays[json.meta.type]) {
      return objArrays[json.meta.type].factory(json);
    }
  }


})();

(function test () {
    // EllipseCurve
    var tobj = new THREE.EllipseCurve(1, 2, 3, 4, 5, 6, 7);
    console.log(tobj);
    var jsonData = JSON.stringify(tobj);
    console.log(jsonData);
    var tobj2 = SF.deserialize(JSON.parse(jsonData));
    console.log(tobj2);

    // ArcCurve
    tobj = new THREE.ArcCurve(1, 2, 3, 4, 5, 6);
    console.log(tobj);
    jsonData = JSON.stringify(tobj);
    console.log(jsonData);
    tobj2 = SF.deserialize(JSON.parse(jsonData));
    console.log(tobj2);

    // CubicBezierCurve
    tobj = new THREE.CubicBezierCurve(new THREE.Vector2(0, 0), new THREE.Vector2(1, 1), new THREE.Vector2(2, 2), new THREE.Vector2(3, 3));
    console.log(tobj);
    jsonData = JSON.stringify(tobj);
    console.log(jsonData);
    tobj2 = SF.deserialize(JSON.parse(jsonData));
    console.log(tobj2);

    // CubicBezierCurve3
    tobj = new THREE.CubicBezierCurve(new THREE.Vector3(0, 0, 0), new THREE.Vector3(1, 1, 1), new THREE.Vector3(2, 2, 2), new THREE.Vector3(3, 3, 3));
    console.log(tobj);
    jsonData = JSON.stringify(tobj);
    console.log(jsonData);
    tobj2 = SF.deserialize(JSON.parse(jsonData));
    console.log(tobj2);

    // LineCurve
    tobj = new THREE.LineCurve(new THREE.Vector2(0, 0), new THREE.Vector2(1, 1));
    console.log(tobj);
    jsonData = JSON.stringify(tobj);
    console.log(jsonData);
    tobj2 = SF.deserialize(JSON.parse(jsonData));
    console.log(tobj2);

    // LineCurve
    tobj = new THREE.LineCurve3(new THREE.Vector3(0, 0), new THREE.Vector3(1, 1));
    console.log(tobj);
    jsonData = JSON.stringify(tobj);
    console.log(jsonData);
    tobj2 = SF.deserialize(JSON.parse(jsonData));
    console.log(tobj2);

    // QuadraticBezierCurve
    tobj = new THREE.QuadraticBezierCurve(new THREE.Vector2(0, 0), new THREE.Vector2(1, 1),new THREE.Vector2(2,2));
    console.log(tobj);
    jsonData = JSON.stringify(tobj);
    console.log(jsonData);
    tobj2 = SF.deserialize(JSON.parse(jsonData));
    console.log(tobj2);

  // QuadraticBezierCurve3
  THREE.QuadraticBezierCurve3.prototype.constructor = THREE.QuadraticBezierCurve3;
  var tobj = new THREE.Vector3(0, 0, 0);//;new THREE.QuadraticBezierCurve3(new THREE.Vector3(0, 0,0), new THREE.Vector3(1, 1,1),new THREE.Vector3(2,2,2));
  console.log(tobj.__proto__.constructor);

  var jsonData = JSON.stringify(tobj);
  console.log(jsonData);
  var tobj2 = SF.deserialize(JSON.parse(jsonData));
  console.log(tobj2);

})();

/dev/horse/0007/pathseg.js

// SVGPathSeg API polyfill
// https://github.com/progers/pathseg
//
// This is a drop-in replacement for the SVGPathSeg and SVGPathSegList APIs that were removed from
// SVG2 (https://lists.w3.org/Archives/Public/www-svg/2015Jun/0044.html), including the latest spec
// changes which were implemented in Firefox 43 and Chrome 46.

(function() { "use strict";
    if (!("SVGPathSeg" in window)) {
        // Spec: http://www.w3.org/TR/SVG11/single-page.html#paths-InterfaceSVGPathSeg
        window.SVGPathSeg = function(type, typeAsLetter, owningPathSegList) {
            this.pathSegType = type;
            this.pathSegTypeAsLetter = typeAsLetter;
            this._owningPathSegList = owningPathSegList;
        }

        window.SVGPathSeg.prototype.classname = "SVGPathSeg";

        window.SVGPathSeg.PATHSEG_UNKNOWN = 0;
        window.SVGPathSeg.PATHSEG_CLOSEPATH = 1;
        window.SVGPathSeg.PATHSEG_MOVETO_ABS = 2;
        window.SVGPathSeg.PATHSEG_MOVETO_REL = 3;
        window.SVGPathSeg.PATHSEG_LINETO_ABS = 4;
        window.SVGPathSeg.PATHSEG_LINETO_REL = 5;
        window.SVGPathSeg.PATHSEG_CURVETO_CUBIC_ABS = 6;
        window.SVGPathSeg.PATHSEG_CURVETO_CUBIC_REL = 7;
        window.SVGPathSeg.PATHSEG_CURVETO_QUADRATIC_ABS = 8;
        window.SVGPathSeg.PATHSEG_CURVETO_QUADRATIC_REL = 9;
        window.SVGPathSeg.PATHSEG_ARC_ABS = 10;
        window.SVGPathSeg.PATHSEG_ARC_REL = 11;
        window.SVGPathSeg.PATHSEG_LINETO_HORIZONTAL_ABS = 12;
        window.SVGPathSeg.PATHSEG_LINETO_HORIZONTAL_REL = 13;
        window.SVGPathSeg.PATHSEG_LINETO_VERTICAL_ABS = 14;
        window.SVGPathSeg.PATHSEG_LINETO_VERTICAL_REL = 15;
        window.SVGPathSeg.PATHSEG_CURVETO_CUBIC_SMOOTH_ABS = 16;
        window.SVGPathSeg.PATHSEG_CURVETO_CUBIC_SMOOTH_REL = 17;
        window.SVGPathSeg.PATHSEG_CURVETO_QUADRATIC_SMOOTH_ABS = 18;
        window.SVGPathSeg.PATHSEG_CURVETO_QUADRATIC_SMOOTH_REL = 19;

        // Notify owning PathSegList on any changes so they can be synchronized back to the path element.
        window.SVGPathSeg.prototype._segmentChanged = function() {
            if (this._owningPathSegList)
                this._owningPathSegList.segmentChanged(this);
        }

        window.SVGPathSegClosePath = function(owningPathSegList) {
            window.SVGPathSeg.call(this, window.SVGPathSeg.PATHSEG_CLOSEPATH, "z", owningPathSegList);
        }
        window.SVGPathSegClosePath.prototype = Object.create(window.SVGPathSeg.prototype);
        window.SVGPathSegClosePath.prototype.toString = function() { return "[object SVGPathSegClosePath]"; }
        window.SVGPathSegClosePath.prototype._asPathString = function() { return this.pathSegTypeAsLetter; }
        window.SVGPathSegClosePath.prototype.clone = function() { return new window.SVGPathSegClosePath(undefined); }

        window.SVGPathSegMovetoAbs = function(owningPathSegList, x, y) {
            window.SVGPathSeg.call(this, window.SVGPathSeg.PATHSEG_MOVETO_ABS, "M", owningPathSegList);
            this._x = x;
            this._y = y;
        }
        window.SVGPathSegMovetoAbs.prototype = Object.create(window.SVGPathSeg.prototype);
        window.SVGPathSegMovetoAbs.prototype.toString = function() { return "[object SVGPathSegMovetoAbs]"; }
        window.SVGPathSegMovetoAbs.prototype._asPathString = function() { return this.pathSegTypeAsLetter + " " + this._x + " " + this._y; }
        window.SVGPathSegMovetoAbs.prototype.clone = function() { return new window.SVGPathSegMovetoAbs(undefined, this._x, this._y); }
        Object.defineProperty(window.SVGPathSegMovetoAbs.prototype, "x", { get: function() { return this._x; }, set: function(x) { this._x = x; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegMovetoAbs.prototype, "y", { get: function() { return this._y; }, set: function(y) { this._y = y; this._segmentChanged(); }, enumerable: true });

        window.SVGPathSegMovetoRel = function(owningPathSegList, x, y) {
            window.SVGPathSeg.call(this, window.SVGPathSeg.PATHSEG_MOVETO_REL, "m", owningPathSegList);
            this._x = x;
            this._y = y;
        }
        window.SVGPathSegMovetoRel.prototype = Object.create(window.SVGPathSeg.prototype);
        window.SVGPathSegMovetoRel.prototype.toString = function() { return "[object SVGPathSegMovetoRel]"; }
        window.SVGPathSegMovetoRel.prototype._asPathString = function() { return this.pathSegTypeAsLetter + " " + this._x + " " + this._y; }
        window.SVGPathSegMovetoRel.prototype.clone = function() { return new window.SVGPathSegMovetoRel(undefined, this._x, this._y); }
        Object.defineProperty(window.SVGPathSegMovetoRel.prototype, "x", { get: function() { return this._x; }, set: function(x) { this._x = x; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegMovetoRel.prototype, "y", { get: function() { return this._y; }, set: function(y) { this._y = y; this._segmentChanged(); }, enumerable: true });

        window.SVGPathSegLinetoAbs = function(owningPathSegList, x, y) {
            window.SVGPathSeg.call(this, window.SVGPathSeg.PATHSEG_LINETO_ABS, "L", owningPathSegList);
            this._x = x;
            this._y = y;
        }
        window.SVGPathSegLinetoAbs.prototype = Object.create(window.SVGPathSeg.prototype);
        window.SVGPathSegLinetoAbs.prototype.toString = function() { return "[object SVGPathSegLinetoAbs]"; }
        window.SVGPathSegLinetoAbs.prototype._asPathString = function() { return this.pathSegTypeAsLetter + " " + this._x + " " + this._y; }
        window.SVGPathSegLinetoAbs.prototype.clone = function() { return new window.SVGPathSegLinetoAbs(undefined, this._x, this._y); }
        Object.defineProperty(window.SVGPathSegLinetoAbs.prototype, "x", { get: function() { return this._x; }, set: function(x) { this._x = x; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegLinetoAbs.prototype, "y", { get: function() { return this._y; }, set: function(y) { this._y = y; this._segmentChanged(); }, enumerable: true });

        window.SVGPathSegLinetoRel = function(owningPathSegList, x, y) {
            window.SVGPathSeg.call(this, window.SVGPathSeg.PATHSEG_LINETO_REL, "l", owningPathSegList);
            this._x = x;
            this._y = y;
        }
        window.SVGPathSegLinetoRel.prototype = Object.create(window.SVGPathSeg.prototype);
        window.SVGPathSegLinetoRel.prototype.toString = function() { return "[object SVGPathSegLinetoRel]"; }
        window.SVGPathSegLinetoRel.prototype._asPathString = function() { return this.pathSegTypeAsLetter + " " + this._x + " " + this._y; }
        window.SVGPathSegLinetoRel.prototype.clone = function() { return new window.SVGPathSegLinetoRel(undefined, this._x, this._y); }
        Object.defineProperty(window.SVGPathSegLinetoRel.prototype, "x", { get: function() { return this._x; }, set: function(x) { this._x = x; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegLinetoRel.prototype, "y", { get: function() { return this._y; }, set: function(y) { this._y = y; this._segmentChanged(); }, enumerable: true });

        window.SVGPathSegCurvetoCubicAbs = function(owningPathSegList, x, y, x1, y1, x2, y2) {
            window.SVGPathSeg.call(this, window.SVGPathSeg.PATHSEG_CURVETO_CUBIC_ABS, "C", owningPathSegList);
            this._x = x;
            this._y = y;
            this._x1 = x1;
            this._y1 = y1;
            this._x2 = x2;
            this._y2 = y2;
        }
        window.SVGPathSegCurvetoCubicAbs.prototype = Object.create(window.SVGPathSeg.prototype);
        window.SVGPathSegCurvetoCubicAbs.prototype.toString = function() { return "[object SVGPathSegCurvetoCubicAbs]"; }
        window.SVGPathSegCurvetoCubicAbs.prototype._asPathString = function() { return this.pathSegTypeAsLetter + " " + this._x1 + " " + this._y1 + " " + this._x2 + " " + this._y2 + " " + this._x + " " + this._y; }
        window.SVGPathSegCurvetoCubicAbs.prototype.clone = function() { return new window.SVGPathSegCurvetoCubicAbs(undefined, this._x, this._y, this._x1, this._y1, this._x2, this._y2); }
        Object.defineProperty(window.SVGPathSegCurvetoCubicAbs.prototype, "x", { get: function() { return this._x; }, set: function(x) { this._x = x; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegCurvetoCubicAbs.prototype, "y", { get: function() { return this._y; }, set: function(y) { this._y = y; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegCurvetoCubicAbs.prototype, "x1", { get: function() { return this._x1; }, set: function(x1) { this._x1 = x1; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegCurvetoCubicAbs.prototype, "y1", { get: function() { return this._y1; }, set: function(y1) { this._y1 = y1; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegCurvetoCubicAbs.prototype, "x2", { get: function() { return this._x2; }, set: function(x2) { this._x2 = x2; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegCurvetoCubicAbs.prototype, "y2", { get: function() { return this._y2; }, set: function(y2) { this._y2 = y2; this._segmentChanged(); }, enumerable: true });

        window.SVGPathSegCurvetoCubicRel = function(owningPathSegList, x, y, x1, y1, x2, y2) {
            window.SVGPathSeg.call(this, window.SVGPathSeg.PATHSEG_CURVETO_CUBIC_REL, "c", owningPathSegList);
            this._x = x;
            this._y = y;
            this._x1 = x1;
            this._y1 = y1;
            this._x2 = x2;
            this._y2 = y2;
        }
        window.SVGPathSegCurvetoCubicRel.prototype = Object.create(window.SVGPathSeg.prototype);
        window.SVGPathSegCurvetoCubicRel.prototype.toString = function() { return "[object SVGPathSegCurvetoCubicRel]"; }
        window.SVGPathSegCurvetoCubicRel.prototype._asPathString = function() { return this.pathSegTypeAsLetter + " " + this._x1 + " " + this._y1 + " " + this._x2 + " " + this._y2 + " " + this._x + " " + this._y; }
        window.SVGPathSegCurvetoCubicRel.prototype.clone = function() { return new window.SVGPathSegCurvetoCubicRel(undefined, this._x, this._y, this._x1, this._y1, this._x2, this._y2); }
        Object.defineProperty(window.SVGPathSegCurvetoCubicRel.prototype, "x", { get: function() { return this._x; }, set: function(x) { this._x = x; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegCurvetoCubicRel.prototype, "y", { get: function() { return this._y; }, set: function(y) { this._y = y; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegCurvetoCubicRel.prototype, "x1", { get: function() { return this._x1; }, set: function(x1) { this._x1 = x1; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegCurvetoCubicRel.prototype, "y1", { get: function() { return this._y1; }, set: function(y1) { this._y1 = y1; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegCurvetoCubicRel.prototype, "x2", { get: function() { return this._x2; }, set: function(x2) { this._x2 = x2; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegCurvetoCubicRel.prototype, "y2", { get: function() { return this._y2; }, set: function(y2) { this._y2 = y2; this._segmentChanged(); }, enumerable: true });

        window.SVGPathSegCurvetoQuadraticAbs = function(owningPathSegList, x, y, x1, y1) {
            window.SVGPathSeg.call(this, window.SVGPathSeg.PATHSEG_CURVETO_QUADRATIC_ABS, "Q", owningPathSegList);
            this._x = x;
            this._y = y;
            this._x1 = x1;
            this._y1 = y1;
        }
        window.SVGPathSegCurvetoQuadraticAbs.prototype = Object.create(window.SVGPathSeg.prototype);
        window.SVGPathSegCurvetoQuadraticAbs.prototype.toString = function() { return "[object SVGPathSegCurvetoQuadraticAbs]"; }
        window.SVGPathSegCurvetoQuadraticAbs.prototype._asPathString = function() { return this.pathSegTypeAsLetter + " " + this._x1 + " " + this._y1 + " " + this._x + " " + this._y; }
        window.SVGPathSegCurvetoQuadraticAbs.prototype.clone = function() { return new window.SVGPathSegCurvetoQuadraticAbs(undefined, this._x, this._y, this._x1, this._y1); }
        Object.defineProperty(window.SVGPathSegCurvetoQuadraticAbs.prototype, "x", { get: function() { return this._x; }, set: function(x) { this._x = x; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegCurvetoQuadraticAbs.prototype, "y", { get: function() { return this._y; }, set: function(y) { this._y = y; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegCurvetoQuadraticAbs.prototype, "x1", { get: function() { return this._x1; }, set: function(x1) { this._x1 = x1; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegCurvetoQuadraticAbs.prototype, "y1", { get: function() { return this._y1; }, set: function(y1) { this._y1 = y1; this._segmentChanged(); }, enumerable: true });

        window.SVGPathSegCurvetoQuadraticRel = function(owningPathSegList, x, y, x1, y1) {
            window.SVGPathSeg.call(this, window.SVGPathSeg.PATHSEG_CURVETO_QUADRATIC_REL, "q", owningPathSegList);
            this._x = x;
            this._y = y;
            this._x1 = x1;
            this._y1 = y1;
        }
        window.SVGPathSegCurvetoQuadraticRel.prototype = Object.create(window.SVGPathSeg.prototype);
        window.SVGPathSegCurvetoQuadraticRel.prototype.toString = function() { return "[object SVGPathSegCurvetoQuadraticRel]"; }
        window.SVGPathSegCurvetoQuadraticRel.prototype._asPathString = function() { return this.pathSegTypeAsLetter + " " + this._x1 + " " + this._y1 + " " + this._x + " " + this._y; }
        window.SVGPathSegCurvetoQuadraticRel.prototype.clone = function() { return new window.SVGPathSegCurvetoQuadraticRel(undefined, this._x, this._y, this._x1, this._y1); }
        Object.defineProperty(window.SVGPathSegCurvetoQuadraticRel.prototype, "x", { get: function() { return this._x; }, set: function(x) { this._x = x; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegCurvetoQuadraticRel.prototype, "y", { get: function() { return this._y; }, set: function(y) { this._y = y; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegCurvetoQuadraticRel.prototype, "x1", { get: function() { return this._x1; }, set: function(x1) { this._x1 = x1; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegCurvetoQuadraticRel.prototype, "y1", { get: function() { return this._y1; }, set: function(y1) { this._y1 = y1; this._segmentChanged(); }, enumerable: true });

        window.SVGPathSegArcAbs = function(owningPathSegList, x, y, r1, r2, angle, largeArcFlag, sweepFlag) {
            window.SVGPathSeg.call(this, window.SVGPathSeg.PATHSEG_ARC_ABS, "A", owningPathSegList);
            this._x = x;
            this._y = y;
            this._r1 = r1;
            this._r2 = r2;
            this._angle = angle;
            this._largeArcFlag = largeArcFlag;
            this._sweepFlag = sweepFlag;
        }
        window.SVGPathSegArcAbs.prototype = Object.create(window.SVGPathSeg.prototype);
        window.SVGPathSegArcAbs.prototype.toString = function() { return "[object SVGPathSegArcAbs]"; }
        window.SVGPathSegArcAbs.prototype._asPathString = function() { return this.pathSegTypeAsLetter + " " + this._r1 + " " + this._r2 + " " + this._angle + " " + (this._largeArcFlag ? "1" : "0") + " " + (this._sweepFlag ? "1" : "0") + " " + this._x + " " + this._y; }
        window.SVGPathSegArcAbs.prototype.clone = function() { return new window.SVGPathSegArcAbs(undefined, this._x, this._y, this._r1, this._r2, this._angle, this._largeArcFlag, this._sweepFlag); }
        Object.defineProperty(window.SVGPathSegArcAbs.prototype, "x", { get: function() { return this._x; }, set: function(x) { this._x = x; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegArcAbs.prototype, "y", { get: function() { return this._y; }, set: function(y) { this._y = y; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegArcAbs.prototype, "r1", { get: function() { return this._r1; }, set: function(r1) { this._r1 = r1; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegArcAbs.prototype, "r2", { get: function() { return this._r2; }, set: function(r2) { this._r2 = r2; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegArcAbs.prototype, "angle", { get: function() { return this._angle; }, set: function(angle) { this._angle = angle; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegArcAbs.prototype, "largeArcFlag", { get: function() { return this._largeArcFlag; }, set: function(largeArcFlag) { this._largeArcFlag = largeArcFlag; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegArcAbs.prototype, "sweepFlag", { get: function() { return this._sweepFlag; }, set: function(sweepFlag) { this._sweepFlag = sweepFlag; this._segmentChanged(); }, enumerable: true });

        window.SVGPathSegArcRel = function(owningPathSegList, x, y, r1, r2, angle, largeArcFlag, sweepFlag) {
            window.SVGPathSeg.call(this, window.SVGPathSeg.PATHSEG_ARC_REL, "a", owningPathSegList);
            this._x = x;
            this._y = y;
            this._r1 = r1;
            this._r2 = r2;
            this._angle = angle;
            this._largeArcFlag = largeArcFlag;
            this._sweepFlag = sweepFlag;
        }
        window.SVGPathSegArcRel.prototype = Object.create(window.SVGPathSeg.prototype);
        window.SVGPathSegArcRel.prototype.toString = function() { return "[object SVGPathSegArcRel]"; }
        window.SVGPathSegArcRel.prototype._asPathString = function() { return this.pathSegTypeAsLetter + " " + this._r1 + " " + this._r2 + " " + this._angle + " " + (this._largeArcFlag ? "1" : "0") + " " + (this._sweepFlag ? "1" : "0") + " " + this._x + " " + this._y; }
        window.SVGPathSegArcRel.prototype.clone = function() { return new window.SVGPathSegArcRel(undefined, this._x, this._y, this._r1, this._r2, this._angle, this._largeArcFlag, this._sweepFlag); }
        Object.defineProperty(window.SVGPathSegArcRel.prototype, "x", { get: function() { return this._x; }, set: function(x) { this._x = x; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegArcRel.prototype, "y", { get: function() { return this._y; }, set: function(y) { this._y = y; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegArcRel.prototype, "r1", { get: function() { return this._r1; }, set: function(r1) { this._r1 = r1; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegArcRel.prototype, "r2", { get: function() { return this._r2; }, set: function(r2) { this._r2 = r2; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegArcRel.prototype, "angle", { get: function() { return this._angle; }, set: function(angle) { this._angle = angle; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegArcRel.prototype, "largeArcFlag", { get: function() { return this._largeArcFlag; }, set: function(largeArcFlag) { this._largeArcFlag = largeArcFlag; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegArcRel.prototype, "sweepFlag", { get: function() { return this._sweepFlag; }, set: function(sweepFlag) { this._sweepFlag = sweepFlag; this._segmentChanged(); }, enumerable: true });

        window.SVGPathSegLinetoHorizontalAbs = function(owningPathSegList, x) {
            window.SVGPathSeg.call(this, window.SVGPathSeg.PATHSEG_LINETO_HORIZONTAL_ABS, "H", owningPathSegList);
            this._x = x;
        }
        window.SVGPathSegLinetoHorizontalAbs.prototype = Object.create(window.SVGPathSeg.prototype);
        window.SVGPathSegLinetoHorizontalAbs.prototype.toString = function() { return "[object SVGPathSegLinetoHorizontalAbs]"; }
        window.SVGPathSegLinetoHorizontalAbs.prototype._asPathString = function() { return this.pathSegTypeAsLetter + " " + this._x; }
        window.SVGPathSegLinetoHorizontalAbs.prototype.clone = function() { return new window.SVGPathSegLinetoHorizontalAbs(undefined, this._x); }
        Object.defineProperty(window.SVGPathSegLinetoHorizontalAbs.prototype, "x", { get: function() { return this._x; }, set: function(x) { this._x = x; this._segmentChanged(); }, enumerable: true });

        window.SVGPathSegLinetoHorizontalRel = function(owningPathSegList, x) {
            window.SVGPathSeg.call(this, window.SVGPathSeg.PATHSEG_LINETO_HORIZONTAL_REL, "h", owningPathSegList);
            this._x = x;
        }
        window.SVGPathSegLinetoHorizontalRel.prototype = Object.create(window.SVGPathSeg.prototype);
        window.SVGPathSegLinetoHorizontalRel.prototype.toString = function() { return "[object SVGPathSegLinetoHorizontalRel]"; }
        window.SVGPathSegLinetoHorizontalRel.prototype._asPathString = function() { return this.pathSegTypeAsLetter + " " + this._x; }
        window.SVGPathSegLinetoHorizontalRel.prototype.clone = function() { return new window.SVGPathSegLinetoHorizontalRel(undefined, this._x); }
        Object.defineProperty(window.SVGPathSegLinetoHorizontalRel.prototype, "x", { get: function() { return this._x; }, set: function(x) { this._x = x; this._segmentChanged(); }, enumerable: true });

        window.SVGPathSegLinetoVerticalAbs = function(owningPathSegList, y) {
            window.SVGPathSeg.call(this, window.SVGPathSeg.PATHSEG_LINETO_VERTICAL_ABS, "V", owningPathSegList);
            this._y = y;
        }
        window.SVGPathSegLinetoVerticalAbs.prototype = Object.create(window.SVGPathSeg.prototype);
        window.SVGPathSegLinetoVerticalAbs.prototype.toString = function() { return "[object SVGPathSegLinetoVerticalAbs]"; }
        window.SVGPathSegLinetoVerticalAbs.prototype._asPathString = function() { return this.pathSegTypeAsLetter + " " + this._y; }
        window.SVGPathSegLinetoVerticalAbs.prototype.clone = function() { return new window.SVGPathSegLinetoVerticalAbs(undefined, this._y); }
        Object.defineProperty(window.SVGPathSegLinetoVerticalAbs.prototype, "y", { get: function() { return this._y; }, set: function(y) { this._y = y; this._segmentChanged(); }, enumerable: true });

        window.SVGPathSegLinetoVerticalRel = function(owningPathSegList, y) {
            window.SVGPathSeg.call(this, window.SVGPathSeg.PATHSEG_LINETO_VERTICAL_REL, "v", owningPathSegList);
            this._y = y;
        }
        window.SVGPathSegLinetoVerticalRel.prototype = Object.create(window.SVGPathSeg.prototype);
        window.SVGPathSegLinetoVerticalRel.prototype.toString = function() { return "[object SVGPathSegLinetoVerticalRel]"; }
        window.SVGPathSegLinetoVerticalRel.prototype._asPathString = function() { return this.pathSegTypeAsLetter + " " + this._y; }
        window.SVGPathSegLinetoVerticalRel.prototype.clone = function() { return new window.SVGPathSegLinetoVerticalRel(undefined, this._y); }
        Object.defineProperty(window.SVGPathSegLinetoVerticalRel.prototype, "y", { get: function() { return this._y; }, set: function(y) { this._y = y; this._segmentChanged(); }, enumerable: true });

        window.SVGPathSegCurvetoCubicSmoothAbs = function(owningPathSegList, x, y, x2, y2) {
            window.SVGPathSeg.call(this, window.SVGPathSeg.PATHSEG_CURVETO_CUBIC_SMOOTH_ABS, "S", owningPathSegList);
            this._x = x;
            this._y = y;
            this._x2 = x2;
            this._y2 = y2;
        }
        window.SVGPathSegCurvetoCubicSmoothAbs.prototype = Object.create(window.SVGPathSeg.prototype);
        window.SVGPathSegCurvetoCubicSmoothAbs.prototype.toString = function() { return "[object SVGPathSegCurvetoCubicSmoothAbs]"; }
        window.SVGPathSegCurvetoCubicSmoothAbs.prototype._asPathString = function() { return this.pathSegTypeAsLetter + " " + this._x2 + " " + this._y2 + " " + this._x + " " + this._y; }
        window.SVGPathSegCurvetoCubicSmoothAbs.prototype.clone = function() { return new window.SVGPathSegCurvetoCubicSmoothAbs(undefined, this._x, this._y, this._x2, this._y2); }
        Object.defineProperty(window.SVGPathSegCurvetoCubicSmoothAbs.prototype, "x", { get: function() { return this._x; }, set: function(x) { this._x = x; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegCurvetoCubicSmoothAbs.prototype, "y", { get: function() { return this._y; }, set: function(y) { this._y = y; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegCurvetoCubicSmoothAbs.prototype, "x2", { get: function() { return this._x2; }, set: function(x2) { this._x2 = x2; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegCurvetoCubicSmoothAbs.prototype, "y2", { get: function() { return this._y2; }, set: function(y2) { this._y2 = y2; this._segmentChanged(); }, enumerable: true });

        window.SVGPathSegCurvetoCubicSmoothRel = function(owningPathSegList, x, y, x2, y2) {
            window.SVGPathSeg.call(this, window.SVGPathSeg.PATHSEG_CURVETO_CUBIC_SMOOTH_REL, "s", owningPathSegList);
            this._x = x;
            this._y = y;
            this._x2 = x2;
            this._y2 = y2;
        }
        window.SVGPathSegCurvetoCubicSmoothRel.prototype = Object.create(window.SVGPathSeg.prototype);
        window.SVGPathSegCurvetoCubicSmoothRel.prototype.toString = function() { return "[object SVGPathSegCurvetoCubicSmoothRel]"; }
        window.SVGPathSegCurvetoCubicSmoothRel.prototype._asPathString = function() { return this.pathSegTypeAsLetter + " " + this._x2 + " " + this._y2 + " " + this._x + " " + this._y; }
        window.SVGPathSegCurvetoCubicSmoothRel.prototype.clone = function() { return new window.SVGPathSegCurvetoCubicSmoothRel(undefined, this._x, this._y, this._x2, this._y2); }
        Object.defineProperty(window.SVGPathSegCurvetoCubicSmoothRel.prototype, "x", { get: function() { return this._x; }, set: function(x) { this._x = x; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegCurvetoCubicSmoothRel.prototype, "y", { get: function() { return this._y; }, set: function(y) { this._y = y; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegCurvetoCubicSmoothRel.prototype, "x2", { get: function() { return this._x2; }, set: function(x2) { this._x2 = x2; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegCurvetoCubicSmoothRel.prototype, "y2", { get: function() { return this._y2; }, set: function(y2) { this._y2 = y2; this._segmentChanged(); }, enumerable: true });

        window.SVGPathSegCurvetoQuadraticSmoothAbs = function(owningPathSegList, x, y) {
            window.SVGPathSeg.call(this, window.SVGPathSeg.PATHSEG_CURVETO_QUADRATIC_SMOOTH_ABS, "T", owningPathSegList);
            this._x = x;
            this._y = y;
        }
        window.SVGPathSegCurvetoQuadraticSmoothAbs.prototype = Object.create(window.SVGPathSeg.prototype);
        window.SVGPathSegCurvetoQuadraticSmoothAbs.prototype.toString = function() { return "[object SVGPathSegCurvetoQuadraticSmoothAbs]"; }
        window.SVGPathSegCurvetoQuadraticSmoothAbs.prototype._asPathString = function() { return this.pathSegTypeAsLetter + " " + this._x + " " + this._y; }
        window.SVGPathSegCurvetoQuadraticSmoothAbs.prototype.clone = function() { return new window.SVGPathSegCurvetoQuadraticSmoothAbs(undefined, this._x, this._y); }
        Object.defineProperty(window.SVGPathSegCurvetoQuadraticSmoothAbs.prototype, "x", { get: function() { return this._x; }, set: function(x) { this._x = x; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegCurvetoQuadraticSmoothAbs.prototype, "y", { get: function() { return this._y; }, set: function(y) { this._y = y; this._segmentChanged(); }, enumerable: true });

        window.SVGPathSegCurvetoQuadraticSmoothRel = function(owningPathSegList, x, y) {
            window.SVGPathSeg.call(this, window.SVGPathSeg.PATHSEG_CURVETO_QUADRATIC_SMOOTH_REL, "t", owningPathSegList);
            this._x = x;
            this._y = y;
        }
        window.SVGPathSegCurvetoQuadraticSmoothRel.prototype = Object.create(window.SVGPathSeg.prototype);
        window.SVGPathSegCurvetoQuadraticSmoothRel.prototype.toString = function() { return "[object SVGPathSegCurvetoQuadraticSmoothRel]"; }
        window.SVGPathSegCurvetoQuadraticSmoothRel.prototype._asPathString = function() { return this.pathSegTypeAsLetter + " " + this._x + " " + this._y; }
        window.SVGPathSegCurvetoQuadraticSmoothRel.prototype.clone = function() { return new window.SVGPathSegCurvetoQuadraticSmoothRel(undefined, this._x, this._y); }
        Object.defineProperty(window.SVGPathSegCurvetoQuadraticSmoothRel.prototype, "x", { get: function() { return this._x; }, set: function(x) { this._x = x; this._segmentChanged(); }, enumerable: true });
        Object.defineProperty(window.SVGPathSegCurvetoQuadraticSmoothRel.prototype, "y", { get: function() { return this._y; }, set: function(y) { this._y = y; this._segmentChanged(); }, enumerable: true });

        // Add createSVGPathSeg* functions to window.SVGPathElement.
        // Spec: http://www.w3.org/TR/SVG11/single-page.html#paths-Interfacewindow.SVGPathElement.
        window.SVGPathElement.prototype.createSVGPathSegClosePath = function() { return new window.SVGPathSegClosePath(undefined); }
        window.SVGPathElement.prototype.createSVGPathSegMovetoAbs = function(x, y) { return new window.SVGPathSegMovetoAbs(undefined, x, y); }
        window.SVGPathElement.prototype.createSVGPathSegMovetoRel = function(x, y) { return new window.SVGPathSegMovetoRel(undefined, x, y); }
        window.SVGPathElement.prototype.createSVGPathSegLinetoAbs = function(x, y) { return new window.SVGPathSegLinetoAbs(undefined, x, y); }
        window.SVGPathElement.prototype.createSVGPathSegLinetoRel = function(x, y) { return new window.SVGPathSegLinetoRel(undefined, x, y); }
        window.SVGPathElement.prototype.createSVGPathSegCurvetoCubicAbs = function(x, y, x1, y1, x2, y2) { return new window.SVGPathSegCurvetoCubicAbs(undefined, x, y, x1, y1, x2, y2); }
        window.SVGPathElement.prototype.createSVGPathSegCurvetoCubicRel = function(x, y, x1, y1, x2, y2) { return new window.SVGPathSegCurvetoCubicRel(undefined, x, y, x1, y1, x2, y2); }
        window.SVGPathElement.prototype.createSVGPathSegCurvetoQuadraticAbs = function(x, y, x1, y1) { return new window.SVGPathSegCurvetoQuadraticAbs(undefined, x, y, x1, y1); }
        window.SVGPathElement.prototype.createSVGPathSegCurvetoQuadraticRel = function(x, y, x1, y1) { return new window.SVGPathSegCurvetoQuadraticRel(undefined, x, y, x1, y1); }
        window.SVGPathElement.prototype.createSVGPathSegArcAbs = function(x, y, r1, r2, angle, largeArcFlag, sweepFlag) { return new window.SVGPathSegArcAbs(undefined, x, y, r1, r2, angle, largeArcFlag, sweepFlag); }
        window.SVGPathElement.prototype.createSVGPathSegArcRel = function(x, y, r1, r2, angle, largeArcFlag, sweepFlag) { return new window.SVGPathSegArcRel(undefined, x, y, r1, r2, angle, largeArcFlag, sweepFlag); }
        window.SVGPathElement.prototype.createSVGPathSegLinetoHorizontalAbs = function(x) { return new window.SVGPathSegLinetoHorizontalAbs(undefined, x); }
        window.SVGPathElement.prototype.createSVGPathSegLinetoHorizontalRel = function(x) { return new window.SVGPathSegLinetoHorizontalRel(undefined, x); }
        window.SVGPathElement.prototype.createSVGPathSegLinetoVerticalAbs = function(y) { return new window.SVGPathSegLinetoVerticalAbs(undefined, y); }
        window.SVGPathElement.prototype.createSVGPathSegLinetoVerticalRel = function(y) { return new window.SVGPathSegLinetoVerticalRel(undefined, y); }
        window.SVGPathElement.prototype.createSVGPathSegCurvetoCubicSmoothAbs = function(x, y, x2, y2) { return new window.SVGPathSegCurvetoCubicSmoothAbs(undefined, x, y, x2, y2); }
        window.SVGPathElement.prototype.createSVGPathSegCurvetoCubicSmoothRel = function(x, y, x2, y2) { return new window.SVGPathSegCurvetoCubicSmoothRel(undefined, x, y, x2, y2); }
        window.SVGPathElement.prototype.createSVGPathSegCurvetoQuadraticSmoothAbs = function(x, y) { return new window.SVGPathSegCurvetoQuadraticSmoothAbs(undefined, x, y); }
        window.SVGPathElement.prototype.createSVGPathSegCurvetoQuadraticSmoothRel = function(x, y) { return new window.SVGPathSegCurvetoQuadraticSmoothRel(undefined, x, y); }
    }

    if (!("SVGPathSegList" in window)) {
        // Spec: http://www.w3.org/TR/SVG11/single-page.html#paths-InterfaceSVGPathSegList
        window.SVGPathSegList = function(pathElement) {
            this._pathElement = pathElement;
            this._list = this._parsePath(this._pathElement.getAttribute("d"));

            // Use a MutationObserver to catch changes to the path's "d" attribute.
            this._mutationObserverConfig = { "attributes": true, "attributeFilter": ["d"] };
            this._pathElementMutationObserver = new MutationObserver(this._updateListFromPathMutations.bind(this));
            this._pathElementMutationObserver.observe(this._pathElement, this._mutationObserverConfig);
        }

        window.SVGPathSegList.prototype.classname = "SVGPathSegList";

        Object.defineProperty(window.SVGPathSegList.prototype, "numberOfItems", {
            get: function() {
                this._checkPathSynchronizedToList();
                return this._list.length;
            },
            enumerable: true
        });

        // Add the pathSegList accessors to window.SVGPathElement.
        // Spec: http://www.w3.org/TR/SVG11/single-page.html#paths-InterfaceSVGAnimatedPathData
        Object.defineProperty(window.SVGPathElement.prototype, "pathSegList", {
            get: function() {
                if (!this._pathSegList)
                    this._pathSegList = new window.SVGPathSegList(this);
                return this._pathSegList;
            },
            enumerable: true
        });
        // FIXME: The following are not implemented and simply return window.SVGPathElement.pathSegList.
        Object.defineProperty(window.SVGPathElement.prototype, "normalizedPathSegList", { get: function() { return this.pathSegList; }, enumerable: true });
        Object.defineProperty(window.SVGPathElement.prototype, "animatedPathSegList", { get: function() { return this.pathSegList; }, enumerable: true });
        Object.defineProperty(window.SVGPathElement.prototype, "animatedNormalizedPathSegList", { get: function() { return this.pathSegList; }, enumerable: true });

        // Process any pending mutations to the path element and update the list as needed.
        // This should be the first call of all public functions and is needed because
        // MutationObservers are not synchronous so we can have pending asynchronous mutations.
        window.SVGPathSegList.prototype._checkPathSynchronizedToList = function() {
            this._updateListFromPathMutations(this._pathElementMutationObserver.takeRecords());
        }

        window.SVGPathSegList.prototype._updateListFromPathMutations = function(mutationRecords) {
            if (!this._pathElement)
                return;
            var hasPathMutations = false;
            mutationRecords.forEach(function(record) {
                if (record.attributeName == "d")
                    hasPathMutations = true;
            });
            if (hasPathMutations)
                this._list = this._parsePath(this._pathElement.getAttribute("d"));
        }

        // Serialize the list and update the path's 'd' attribute.
        window.SVGPathSegList.prototype._writeListToPath = function() {
            this._pathElementMutationObserver.disconnect();
            this._pathElement.setAttribute("d", window.SVGPathSegList._pathSegArrayAsString(this._list));
            this._pathElementMutationObserver.observe(this._pathElement, this._mutationObserverConfig);
        }

        // When a path segment changes the list needs to be synchronized back to the path element.
        window.SVGPathSegList.prototype.segmentChanged = function(pathSeg) {
            this._writeListToPath();
        }

        window.SVGPathSegList.prototype.clear = function() {
            this._checkPathSynchronizedToList();

            this._list.forEach(function(pathSeg) {
                pathSeg._owningPathSegList = null;
            });
            this._list = [];
            this._writeListToPath();
        }

        window.SVGPathSegList.prototype.initialize = function(newItem) {
            this._checkPathSynchronizedToList();

            this._list = [newItem];
            newItem._owningPathSegList = this;
            this._writeListToPath();
            return newItem;
        }

        window.SVGPathSegList.prototype._checkValidIndex = function(index) {
            if (isNaN(index) || index < 0 || index >= this.numberOfItems)
                throw "INDEX_SIZE_ERR";
        }

        window.SVGPathSegList.prototype.getItem = function(index) {
            this._checkPathSynchronizedToList();

            this._checkValidIndex(index);
            return this._list[index];
        }

        window.SVGPathSegList.prototype.insertItemBefore = function(newItem, index) {
            this._checkPathSynchronizedToList();

            // Spec: If the index is greater than or equal to numberOfItems, then the new item is appended to the end of the list.
            if (index > this.numberOfItems)
                index = this.numberOfItems;
            if (newItem._owningPathSegList) {
                // SVG2 spec says to make a copy.
                newItem = newItem.clone();
            }
            this._list.splice(index, 0, newItem);
            newItem._owningPathSegList = this;
            this._writeListToPath();
            return newItem;
        }

        window.SVGPathSegList.prototype.replaceItem = function(newItem, index) {
            this._checkPathSynchronizedToList();

            if (newItem._owningPathSegList) {
                // SVG2 spec says to make a copy.
                newItem = newItem.clone();
            }
            this._checkValidIndex(index);
            this._list[index] = newItem;
            newItem._owningPathSegList = this;
            this._writeListToPath();
            return newItem;
        }

        window.SVGPathSegList.prototype.removeItem = function(index) {
            this._checkPathSynchronizedToList();

            this._checkValidIndex(index);
            var item = this._list[index];
            this._list.splice(index, 1);
            this._writeListToPath();
            return item;
        }

        window.SVGPathSegList.prototype.appendItem = function(newItem) {
            this._checkPathSynchronizedToList();

            if (newItem._owningPathSegList) {
                // SVG2 spec says to make a copy.
                newItem = newItem.clone();
            }
            this._list.push(newItem);
            newItem._owningPathSegList = this;
            // TODO: Optimize this to just append to the existing attribute.
            this._writeListToPath();
            return newItem;
        }

        window.SVGPathSegList._pathSegArrayAsString = function(pathSegArray) {
            var string = "";
            var first = true;
            pathSegArray.forEach(function(pathSeg) {
                if (first) {
                    first = false;
                    string += pathSeg._asPathString();
                } else {
                    string += " " + pathSeg._asPathString();
                }
            });
            return string;
        }

        // This closely follows SVGPathParser::parsePath from Source/core/svg/SVGPathParser.cpp.
        window.SVGPathSegList.prototype._parsePath = function(string) {
            if (!string || string.length == 0)
                return [];

            var owningPathSegList = this;

            var Builder = function() {
                this.pathSegList = [];
            }

            Builder.prototype.appendSegment = function(pathSeg) {
                this.pathSegList.push(pathSeg);
            }

            var Source = function(string) {
                this._string = string;
                this._currentIndex = 0;
                this._endIndex = this._string.length;
                this._previousCommand = window.SVGPathSeg.PATHSEG_UNKNOWN;

                this._skipOptionalSpaces();
            }

            Source.prototype._isCurrentSpace = function() {
                var character = this._string[this._currentIndex];
                return character <= " " && (character == " " || character == "\n" || character == "\t" || character == "\r" || character == "\f");
            }

            Source.prototype._skipOptionalSpaces = function() {
                while (this._currentIndex < this._endIndex && this._isCurrentSpace())
                    this._currentIndex++;
                return this._currentIndex < this._endIndex;
            }

            Source.prototype._skipOptionalSpacesOrDelimiter = function() {
                if (this._currentIndex < this._endIndex && !this._isCurrentSpace() && this._string.charAt(this._currentIndex) != ",")
                    return false;
                if (this._skipOptionalSpaces()) {
                    if (this._currentIndex < this._endIndex && this._string.charAt(this._currentIndex) == ",") {
                        this._currentIndex++;
                        this._skipOptionalSpaces();
                    }
                }
                return this._currentIndex < this._endIndex;
            }

            Source.prototype.hasMoreData = function() {
                return this._currentIndex < this._endIndex;
            }

            Source.prototype.peekSegmentType = function() {
                var lookahead = this._string[this._currentIndex];
                return this._pathSegTypeFromChar(lookahead);
            }

            Source.prototype._pathSegTypeFromChar = function(lookahead) {
                switch (lookahead) {
                case "Z":
                case "z":
                    return window.SVGPathSeg.PATHSEG_CLOSEPATH;
                case "M":
                    return window.SVGPathSeg.PATHSEG_MOVETO_ABS;
                case "m":
                    return window.SVGPathSeg.PATHSEG_MOVETO_REL;
                case "L":
                    return window.SVGPathSeg.PATHSEG_LINETO_ABS;
                case "l":
                    return window.SVGPathSeg.PATHSEG_LINETO_REL;
                case "C":
                    return window.SVGPathSeg.PATHSEG_CURVETO_CUBIC_ABS;
                case "c":
                    return window.SVGPathSeg.PATHSEG_CURVETO_CUBIC_REL;
                case "Q":
                    return window.SVGPathSeg.PATHSEG_CURVETO_QUADRATIC_ABS;
                case "q":
                    return window.SVGPathSeg.PATHSEG_CURVETO_QUADRATIC_REL;
                case "A":
                    return window.SVGPathSeg.PATHSEG_ARC_ABS;
                case "a":
                    return window.SVGPathSeg.PATHSEG_ARC_REL;
                case "H":
                    return window.SVGPathSeg.PATHSEG_LINETO_HORIZONTAL_ABS;
                case "h":
                    return window.SVGPathSeg.PATHSEG_LINETO_HORIZONTAL_REL;
                case "V":
                    return window.SVGPathSeg.PATHSEG_LINETO_VERTICAL_ABS;
                case "v":
                    return window.SVGPathSeg.PATHSEG_LINETO_VERTICAL_REL;
                case "S":
                    return window.SVGPathSeg.PATHSEG_CURVETO_CUBIC_SMOOTH_ABS;
                case "s":
                    return window.SVGPathSeg.PATHSEG_CURVETO_CUBIC_SMOOTH_REL;
                case "T":
                    return window.SVGPathSeg.PATHSEG_CURVETO_QUADRATIC_SMOOTH_ABS;
                case "t":
                    return window.SVGPathSeg.PATHSEG_CURVETO_QUADRATIC_SMOOTH_REL;
                default:
                    return window.SVGPathSeg.PATHSEG_UNKNOWN;
                }
            }

            Source.prototype._nextCommandHelper = function(lookahead, previousCommand) {
                // Check for remaining coordinates in the current command.
                if ((lookahead == "+" || lookahead == "-" || lookahead == "." || (lookahead >= "0" && lookahead <= "9")) && previousCommand != window.SVGPathSeg.PATHSEG_CLOSEPATH) {
                    if (previousCommand == window.SVGPathSeg.PATHSEG_MOVETO_ABS)
                        return window.SVGPathSeg.PATHSEG_LINETO_ABS;
                    if (previousCommand == window.SVGPathSeg.PATHSEG_MOVETO_REL)
                        return window.SVGPathSeg.PATHSEG_LINETO_REL;
                    return previousCommand;
                }
                return window.SVGPathSeg.PATHSEG_UNKNOWN;
            }

            Source.prototype.initialCommandIsMoveTo = function() {
                // If the path is empty it is still valid, so return true.
                if (!this.hasMoreData())
                    return true;
                var command = this.peekSegmentType();
                // Path must start with moveTo.
                return command == window.SVGPathSeg.PATHSEG_MOVETO_ABS || command == window.SVGPathSeg.PATHSEG_MOVETO_REL;
            }

            // Parse a number from an SVG path. This very closely follows genericParseNumber(...) from Source/core/svg/SVGParserUtilities.cpp.
            // Spec: http://www.w3.org/TR/SVG11/single-page.html#paths-PathDataBNF
            Source.prototype._parseNumber = function() {
                var exponent = 0;
                var integer = 0;
                var frac = 1;
                var decimal = 0;
                var sign = 1;
                var expsign = 1;

                var startIndex = this._currentIndex;

                this._skipOptionalSpaces();

                // Read the sign.
                if (this._currentIndex < this._endIndex && this._string.charAt(this._currentIndex) == "+")
                    this._currentIndex++;
                else if (this._currentIndex < this._endIndex && this._string.charAt(this._currentIndex) == "-") {
                    this._currentIndex++;
                    sign = -1;
                }

                if (this._currentIndex == this._endIndex || ((this._string.charAt(this._currentIndex) < "0" || this._string.charAt(this._currentIndex) > "9") && this._string.charAt(this._currentIndex) != "."))
                    // The first character of a number must be one of [0-9+-.].
                    return undefined;

                // Read the integer part, build right-to-left.
                var startIntPartIndex = this._currentIndex;
                while (this._currentIndex < this._endIndex && this._string.charAt(this._currentIndex) >= "0" && this._string.charAt(this._currentIndex) <= "9")
                    this._currentIndex++; // Advance to first non-digit.

                if (this._currentIndex != startIntPartIndex) {
                    var scanIntPartIndex = this._currentIndex - 1;
                    var multiplier = 1;
                    while (scanIntPartIndex >= startIntPartIndex) {
                        integer += multiplier * (this._string.charAt(scanIntPartIndex--) - "0");
                        multiplier *= 10;
                    }
                }

                // Read the decimals.
                if (this._currentIndex < this._endIndex && this._string.charAt(this._currentIndex) == ".") {
                    this._currentIndex++;

                    // There must be a least one digit following the .
                    if (this._currentIndex >= this._endIndex || this._string.charAt(this._currentIndex) < "0" || this._string.charAt(this._currentIndex) > "9")
                        return undefined;
                    while (this._currentIndex < this._endIndex && this._string.charAt(this._currentIndex) >= "0" && this._string.charAt(this._currentIndex) <= "9") {
                        frac *= 10;
                        decimal += (this._string.charAt(this._currentIndex) - "0") / frac;
                        this._currentIndex += 1;
                    }
                }

                // Read the exponent part.
                if (this._currentIndex != startIndex && this._currentIndex + 1 < this._endIndex && (this._string.charAt(this._currentIndex) == "e" || this._string.charAt(this._currentIndex) == "E") && (this._string.charAt(this._currentIndex + 1) != "x" && this._string.charAt(this._currentIndex + 1) != "m")) {
                    this._currentIndex++;

                    // Read the sign of the exponent.
                    if (this._string.charAt(this._currentIndex) == "+") {
                        this._currentIndex++;
                    } else if (this._string.charAt(this._currentIndex) == "-") {
                        this._currentIndex++;
                        expsign = -1;
                    }

                    // There must be an exponent.
                    if (this._currentIndex >= this._endIndex || this._string.charAt(this._currentIndex) < "0" || this._string.charAt(this._currentIndex) > "9")
                        return undefined;

                    while (this._currentIndex < this._endIndex && this._string.charAt(this._currentIndex) >= "0" && this._string.charAt(this._currentIndex) <= "9") {
                        exponent *= 10;
                        exponent += (this._string.charAt(this._currentIndex) - "0");
                        this._currentIndex++;
                    }
                }

                var number = integer + decimal;
                number *= sign;

                if (exponent)
                    number *= Math.pow(10, expsign * exponent);

                if (startIndex == this._currentIndex)
                    return undefined;

                this._skipOptionalSpacesOrDelimiter();

                return number;
            }

            Source.prototype._parseArcFlag = function() {
                if (this._currentIndex >= this._endIndex)
                    return undefined;
                var flag = false;
                var flagChar = this._string.charAt(this._currentIndex++);
                if (flagChar == "0")
                    flag = false;
                else if (flagChar == "1")
                    flag = true;
                else
                    return undefined;

                this._skipOptionalSpacesOrDelimiter();
                return flag;
            }

            Source.prototype.parseSegment = function() {
                var lookahead = this._string[this._currentIndex];
                var command = this._pathSegTypeFromChar(lookahead);
                if (command == window.SVGPathSeg.PATHSEG_UNKNOWN) {
                    // Possibly an implicit command. Not allowed if this is the first command.
                    if (this._previousCommand == window.SVGPathSeg.PATHSEG_UNKNOWN)
                        return null;
                    command = this._nextCommandHelper(lookahead, this._previousCommand);
                    if (command == window.SVGPathSeg.PATHSEG_UNKNOWN)
                        return null;
                } else {
                    this._currentIndex++;
                }

                this._previousCommand = command;

                switch (command) {
                case window.SVGPathSeg.PATHSEG_MOVETO_REL:
                    return new window.SVGPathSegMovetoRel(owningPathSegList, this._parseNumber(), this._parseNumber());
                case window.SVGPathSeg.PATHSEG_MOVETO_ABS:
                    return new window.SVGPathSegMovetoAbs(owningPathSegList, this._parseNumber(), this._parseNumber());
                case window.SVGPathSeg.PATHSEG_LINETO_REL:
                    return new window.SVGPathSegLinetoRel(owningPathSegList, this._parseNumber(), this._parseNumber());
                case window.SVGPathSeg.PATHSEG_LINETO_ABS:
                    return new window.SVGPathSegLinetoAbs(owningPathSegList, this._parseNumber(), this._parseNumber());
                case window.SVGPathSeg.PATHSEG_LINETO_HORIZONTAL_REL:
                    return new window.SVGPathSegLinetoHorizontalRel(owningPathSegList, this._parseNumber());
                case window.SVGPathSeg.PATHSEG_LINETO_HORIZONTAL_ABS:
                    return new window.SVGPathSegLinetoHorizontalAbs(owningPathSegList, this._parseNumber());
                case window.SVGPathSeg.PATHSEG_LINETO_VERTICAL_REL:
                    return new window.SVGPathSegLinetoVerticalRel(owningPathSegList, this._parseNumber());
                case window.SVGPathSeg.PATHSEG_LINETO_VERTICAL_ABS:
                    return new window.SVGPathSegLinetoVerticalAbs(owningPathSegList, this._parseNumber());
                case window.SVGPathSeg.PATHSEG_CLOSEPATH:
                    this._skipOptionalSpaces();
                    return new window.SVGPathSegClosePath(owningPathSegList);
                case window.SVGPathSeg.PATHSEG_CURVETO_CUBIC_REL:
                    var points = {x1: this._parseNumber(), y1: this._parseNumber(), x2: this._parseNumber(), y2: this._parseNumber(), x: this._parseNumber(), y: this._parseNumber()};
                    return new window.SVGPathSegCurvetoCubicRel(owningPathSegList, points.x, points.y, points.x1, points.y1, points.x2, points.y2);
                case window.SVGPathSeg.PATHSEG_CURVETO_CUBIC_ABS:
                    var points = {x1: this._parseNumber(), y1: this._parseNumber(), x2: this._parseNumber(), y2: this._parseNumber(), x: this._parseNumber(), y: this._parseNumber()};
                    return new window.SVGPathSegCurvetoCubicAbs(owningPathSegList, points.x, points.y, points.x1, points.y1, points.x2, points.y2);
                case window.SVGPathSeg.PATHSEG_CURVETO_CUBIC_SMOOTH_REL:
                    var points = {x2: this._parseNumber(), y2: this._parseNumber(), x: this._parseNumber(), y: this._parseNumber()};
                    return new window.SVGPathSegCurvetoCubicSmoothRel(owningPathSegList, points.x, points.y, points.x2, points.y2);
                case window.SVGPathSeg.PATHSEG_CURVETO_CUBIC_SMOOTH_ABS:
                    var points = {x2: this._parseNumber(), y2: this._parseNumber(), x: this._parseNumber(), y: this._parseNumber()};
                    return new window.SVGPathSegCurvetoCubicSmoothAbs(owningPathSegList, points.x, points.y, points.x2, points.y2);
                case window.SVGPathSeg.PATHSEG_CURVETO_QUADRATIC_REL:
                    var points = {x1: this._parseNumber(), y1: this._parseNumber(), x: this._parseNumber(), y: this._parseNumber()};
                    return new window.SVGPathSegCurvetoQuadraticRel(owningPathSegList, points.x, points.y, points.x1, points.y1);
                case window.SVGPathSeg.PATHSEG_CURVETO_QUADRATIC_ABS:
                    var points = {x1: this._parseNumber(), y1: this._parseNumber(), x: this._parseNumber(), y: this._parseNumber()};
                    return new window.SVGPathSegCurvetoQuadraticAbs(owningPathSegList, points.x, points.y, points.x1, points.y1);
                case window.SVGPathSeg.PATHSEG_CURVETO_QUADRATIC_SMOOTH_REL:
                    return new window.SVGPathSegCurvetoQuadraticSmoothRel(owningPathSegList, this._parseNumber(), this._parseNumber());
                case window.SVGPathSeg.PATHSEG_CURVETO_QUADRATIC_SMOOTH_ABS:
                    return new window.SVGPathSegCurvetoQuadraticSmoothAbs(owningPathSegList, this._parseNumber(), this._parseNumber());
                case window.SVGPathSeg.PATHSEG_ARC_REL:
                    var points = {x1: this._parseNumber(), y1: this._parseNumber(), arcAngle: this._parseNumber(), arcLarge: this._parseArcFlag(), arcSweep: this._parseArcFlag(), x: this._parseNumber(), y: this._parseNumber()};
                    return new window.SVGPathSegArcRel(owningPathSegList, points.x, points.y, points.x1, points.y1, points.arcAngle, points.arcLarge, points.arcSweep);
                case window.SVGPathSeg.PATHSEG_ARC_ABS:
                    var points = {x1: this._parseNumber(), y1: this._parseNumber(), arcAngle: this._parseNumber(), arcLarge: this._parseArcFlag(), arcSweep: this._parseArcFlag(), x: this._parseNumber(), y: this._parseNumber()};
                    return new window.SVGPathSegArcAbs(owningPathSegList, points.x, points.y, points.x1, points.y1, points.arcAngle, points.arcLarge, points.arcSweep);
                default:
                    throw "Unknown path seg type."
                }
            }

            var builder = new Builder();
            var source = new Source(string);

            if (!source.initialCommandIsMoveTo())
                return [];
            while (source.hasMoreData()) {
                var pathSeg = source.parseSegment();
                if (!pathSeg)
                    return [];
                builder.appendSegment(pathSeg);
            }

            return builder.pathSegList;
        }
    }
}());

/dev/horse/0007/svgToPath.js

//The MIT License (MIT)
//
//Copyright (c) 2015 Satoshi Fujiwara
//
//Permission is hereby granted, free of charge, to any person obtaining a copy
//of this software and associated documentation files (the "Software"), to deal
//in the Software without restriction, including without limitation the rights
//to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
//copies of the Software, and to permit persons to whom the Software is
//furnished to do so, subject to the following conditions:
//
//The above copyright notice and this permission notice shall be included in
//all copies or substantial portions of the Software.
//
//THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
//IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
//FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
//AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
//LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
//OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
//THE SOFTWARE.

/// <reference path="http://cdnjs.cloudflare.com/ajax/libs/d3/3.5.2/d3.js" />
/// <reference path="http://cdnjs.cloudflare.com/ajax/libs/three.js/r70/three.js" />
/// <reference path="..\intellisense\q.intellisense.js" />
/// <reference path="pathSerializer.js" />

//(function(){
//  var fs = require('fs');
//  try {
//    fs.mkdirSync('./temp');
//  } catch(e){
//    if(e.code != "EEXIST"){
//      throw e;
//    }
//  }
//})();

/dev/horse/0007/thumbnail.png
